| Nominal Bore diameter |
Deviation | Nominal outer diameter | Deviation | ||||
| > | <= | △dmp | > | <= | △Dmp | ||
| 12 | 18 | 0 | +18 | 30 | 50 | 0 | -1 |
| 18 | 24 | 0 | +18 | 50 | 80 | 0 | -13 |
| 24 | 30 | 0 | +18 | 80 | 120 | 0 | -15 |
| 30 | 40 | 0 | +18 | 120 | 150 | 0 | -18 |
| 40 | 50 | 0 | +18 | 150 | 180 | 0 | -25 |
| 50 | 60 | 0 | +18 | 180 | 250 | 0 | -30 |
| 60 | 90 | 0 | +25 | ||||
| 90 | 120 | 0 | +30 | ||||
DHK insert ball bearings are produced with radial clearance group C3 of deep groove ball bearing.
Detailed values are listed in the table below.
| Nominal Bore diameter(mm) |
Radial internal clearance(um) | ||
| > | <= | min. | Max. |
| 12 | 18 | 11 | 25 |
| 18 | 30 | 13 | 28 |
| 30 | 40 | 15 | 33 |
| 40 | 50 | 18 | 26 |
| 50 | 65 | 23 | 43 |
| 65 | 80 | 25 | 51 |
| 80 | 100 | 30 | 58 |
| 100 | 120 | 36 | 66 |

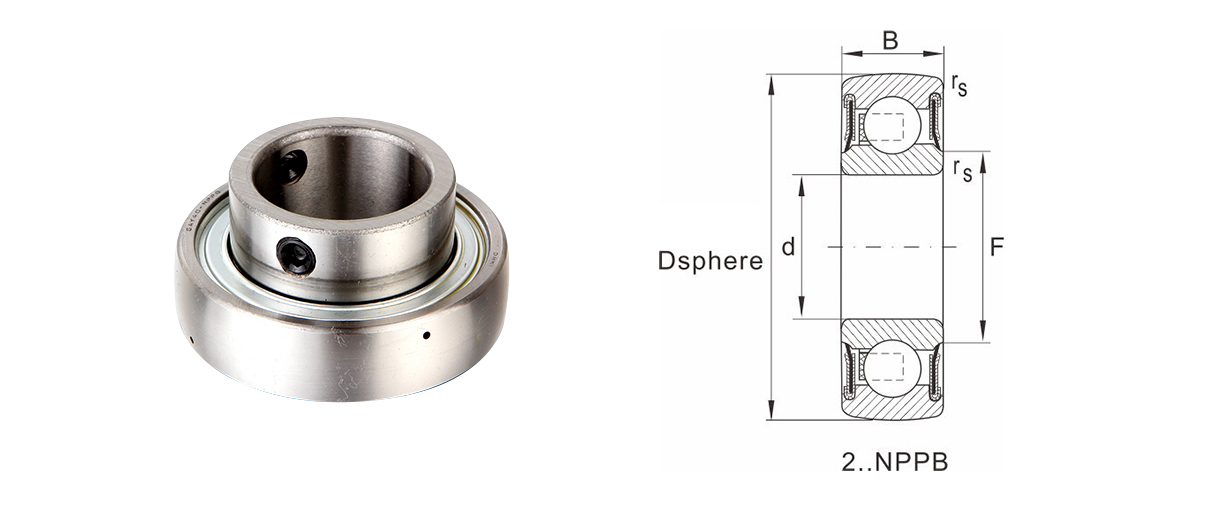

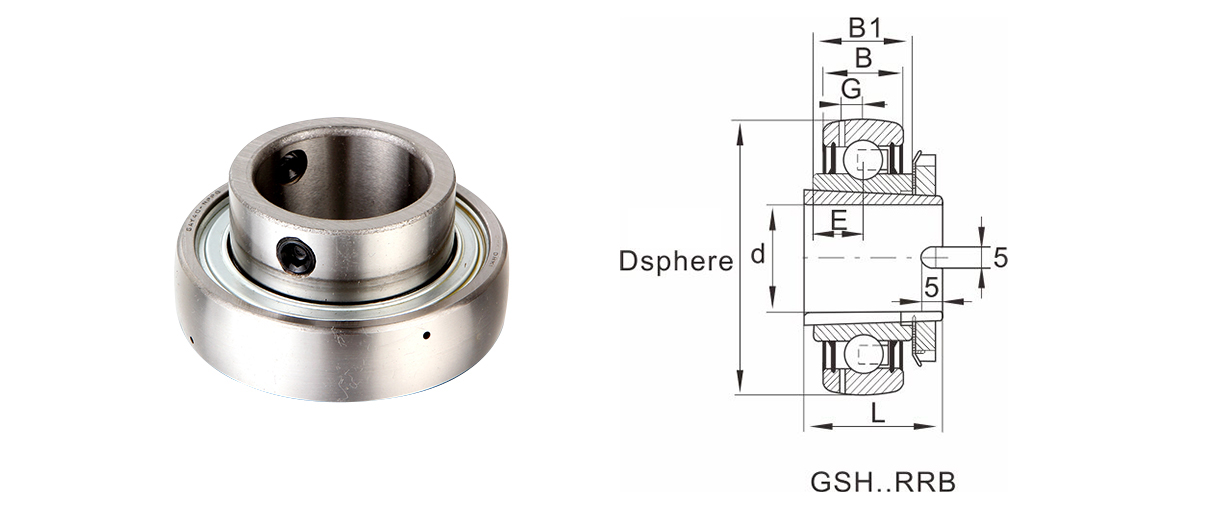

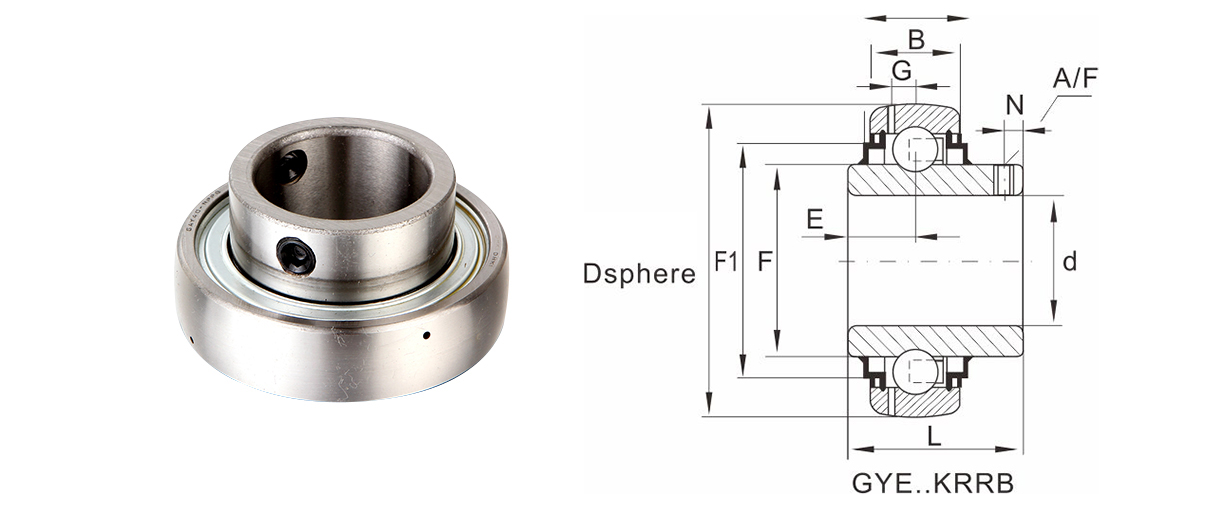

| Model | Size | Rated load | ||||||||||||||||
| Shaft diameter | Weight | d | D | B | B1 | E | F | F1 | G | L | N | R | rs min | A/F | Limiting speed ng grease min-1 | Dynamic load | Static load | |
201NPPB |
12 | 0.04 |
12 |
32 |
10 |
-- | -- | 17.1 | -- | -- | -- | -- | -- | 0.6 | -- | 18300 | 6800 | 3050 |
AY12NPPB |
12 | 0.1 |
12 |
40 |
12 |
-- | 6 | 23.9 | -- | -- | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GAY12NPPB |
12 | 0.1 |
12 |
40 |
12 |
-- | 6 | 23.9 | -- | 3.3 | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE12KRRB |
12 | 0.11 |
12 |
40 |
12 |
16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
AY15NPPB |
15 | 0.09 |
15 |
40 |
12 |
-- | 6 | 23.9 | -- | -- | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GAY15NPPB |
15 | 0.09 |
15 |
40 |
12 |
-- | 6 | 23.9 | -- | 3.3 | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE15KRRB |
15 | 0.1 |
15 |
40 |
12 |
16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE16KRRB |
16 | 0.1 |
16 |
40 |
12 |
16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
203NPPB |
17 | 0.06 |
17 |
40 |
12 |
-- | -- | 23.9 | -- | -- | -- | 4 | -- | 0.6 | -- | 13000 | 9600 | 4750 |
AY17NPPB |
17 | 0.08 |
17 |
40 |
12 |
-- | 6 | 23.9 | -- | -- | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GAY17NPPB |
17 | 0.08 |
17 |
40 |
12 |
-- | 6 | 23.9 | -- | 3.3 | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE17KRRB |
17 | 0.09 |
17 |
40 |
12 |
16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
204NPPB |
20 | 0.11 |
20 |
47 |
14 |
-- | -- | 26.5 | -- | -- | -- | -- | -- | 1 | -- | 11000 | 12800 | 6600 |
AY20NPPB |
20 | 0.13 |
20 |
47 |
14 |
-- | 7 | 28.3 | -- | -- | 25 | 4.5 | -- | -- | 2.5 | -- | 12800 | 6600 |
GAY20NPPB |
20 | 0.13 |
20 |
47 |
14 |
-- | 7 | 28.3 | -- | 3.7 | 25 | 4.5 | -- | -- | 2.5 | -- | 12800 | 6600 |
GLE20KRRB |
20 | 0.16 |
20 |
47 |
14 |
16.6 | 15.6 | 27.6 | 37.4 | 3.7 | 34.1 | 7 | 7 | -- | -- | -- | 12800 | 6600 |
GSH20RRB |
20 | 0.14 |
20 |
47 |
14 |
15 | 7.5 | -- | -- | 3.7 | 28 | -- | -- | -- | -- | -- | 12700 | 6600 |
GYE20KRRB |
20 | 0.17 |
20 |
47 |
14 |
16.6 | 12.7 | 27.6 | 37.4 | 3.7 | 31 | 4.5 | -- | -- | 2.5 | -- | 12800 | 6600 |
205NPPB |
25 | 0.13 |
25 |
52 |
15 |
-- | -- | 30.3 | -- | -- | -- | -- | -- | 1 | -- | 88000 | 14000 | 7800 |
AY25NPPB |
25 | 0.16 |
25 |
52 |
15 |
-- | 7.5 | 33.5 | -- | -- | 27 | 5 | -- | -- | 2.5 | -- | 14000 | 7800 |
GAY25NPPB |
25 | 0.16 |
25 |
52 |
15 |
-- | 7.5 | 33.5 | -- | 3.9 | 27 | 5 | -- | -- | 2.5 | -- | 14000 | 7800 |
GLE25KRRB |
25 | 0.19 |
25 |
52 |
15 |
16.7 | 14.7 | 33.8 | 42.5 | 3.9 | 34.9 | 8 | 7 | -- | -- | -- | 14000 | 7800 |
GSH25RRB |
25 | 0.17 |
25 |
52 |
15 |
15 | 7.5 | -- | -- | 3.9 | 28 | -- | -- | -- | -- | -- | 13600 | 7800 |
GYE25KRRB |
25 | 0.2 |
25 |
52 |
15 |
16.7 | 14.3 | 33.8 | 42.5 | 3.9 | 34.1 | 5 | -- | -- | 2.5 | -- | 14000 | 7800 |
206NPPB |
30 | 0.2 |
30 |
62 |
16 |
-- | -- | 37.4 | -- | -- | -- | -- | -- | 1 | -- | 7300 | 19500 | 11300 |
AY30NPPB |
30 | 0.25 |
30 |
62 |
18 |
-- | 9 | 39.4 | -- | -- | 30 | 5 | -- | -- | 3 | -- | 19500 | 11300 |
GAY30NPPB |
30 | 0.25 |
30 |
62 |
18 |
-- | 9 | 39.4 | -- | 5 | 30 | 5 | -- | -- | 3 | -- | 19500 | 11300 |
GLE30KRRB |
30 | 0.3 |
30 |
62 |
18 |
20.7 | 14.5 | 40.2 | 52 | 5 | 36.5 | 8 | 7 | -- | -- | -- | 19500 | 11300 |
GSH30RRB |
30 | 0.27 |
30 |
62 |
18 |
18 | 9 | -- | -- | 5 | 32 | -- | -- | -- | -- | -- | 18900 | 11300 |
GYE30KRRB |
30 | 0.33 |
30 |
62 |
18 |
20.7 | 15.9 | 40.2 | 52 | 5 | 38.1 | 5 | -- | -- | 3 | -- | 19500 | 11300 |
207NPPB |
35 | 0.29 |
35 |
72 |
17 |
-- | -- | 42.4 | -- | -- | -- | -- | -- | 1 | -- | 6300 | 25500 | 15300 |
GAY35NPPB |
35 | 0.39 |
35 |
72 |
19 |
-- | 9.5 | 46.9 | -- | 5.7 | 35 | 6 | -- | -- | 3 | -- | 25500 | 15300 |
GLE35KRRB |
35 | 0.43 |
35 |
72 |
19 |
22.5 | 15.7 | 46.8 | 60.3 | 5.7 | 37.7 | 8 | 7 | -- | -- | -- | 25500 | 15300 |
GSH35RRB |
35 | 0.43 |
35 |
72 |
19 |
19 | 9.5 | -- | -- | 5.7 | 34 | -- | -- | -- | -- | -- | 24900 | 15300 |
GYE35KRRB |
35 | 0.49 |
35 |
72 |
19 |
22.5 | 17.5 | 46.8 | 60.6 | 5.7 | 42.9 | 6 | -- | -- | 3 | -- | 25500 | 15300 |
208NPPB |
40 | 0.37 |
40 |
80 |
18 |
-- | -- | 48.4 | -- | -- | -- | -- | -- | 1.1 | -- | 4900 | 32500 | 19800 |
GAY40NPPB |
40 | 0.51 |
40 |
80 |
21 |
-- | 10.5 | 52.4 | -- | 6.2 | 39.5 | 8 | -- | -- | 4 | -- | 32500 | 19800 |
GLE40KRRB |
40 | 0.58 |
40 |
80 |
21 |
23.5 | 15.9 | 52.3 | 68.3 | 6.2 | 42.9 | 9 | 7 | -- | -- | -- | 32500 | 19800 |
GSH40RRB |
40 | 0.54 |
40 |
80 |
21 |
22 | 11 | -- | -- | 6.2 | 38 | -- | -- | -- | -- | -- | 29500 | 19800 |
GYE40KRRB |
40 | 0.65 |
40 |
80 |
21 |
23.5 | 19 | 52.3 | 68.3 | 6.2 | 49.2 | 8 | -- | -- | 4 | -- | 32500 | 23200 |
GYE40KRRB-209 |
40 | 0.7 |
40 |
85 |
22 |
26.4 | 19 | 57.9 | 72.3 | 6.4 | 49.2 | 8 | -- | -- | 4 | -- | 32500 | 20400 |
209NPPB |
45 | 0.41 |
45 |
85 |
19 |
-- | -- | 53.2 | -- | -- | -- | -- | -- | 1.1 | -- | 4900 | 32500 | 20400 |
GAY45NPPB |
45 | 0.55 |
45 |
85 |
22 |
-- | 11 | 57 | -- | 6.4 | 41.5 | 8 | -- | -- | 4 | -- | 32500 | 20400 |
GLE45KRRB |
45 | 0.66 |
45 |
85 |
22 |
26.4 | 17.4 | 57.9 | 72.3 | 6.4 | 42.9 | 9 | 7 | -- | -- | -- | 32500 | 20400 |
GYE45KRRB |
45 | 0.7 |
45 |
85 |
22 |
26.4 | 19 | 57 | 72.3 | 6.4 | 49.2 | 8 | -- | -- | 4 | -- | 32500 | 20400 |
GYE45KRRB-210 |
45 | 0.8 |
45 |
90 |
22 |
26.4 | 19 | 62.8 | 77.3 | 6.5 | 51.6 | 8.5 | -- | -- | 4 | -- | 32500 | 20400 |
210NPPB |
50 | 0.46 |
50 |
90 |
20 |
-- | -- | 58.2 | -- | -- | -- | -- | -- | 1.1 | -- | 4400 | 35000 | 232000 |
GAY50NPPB |
50 | 0.62 |
50 |
90 |
22 |
-- | 11 | 62 | -- | 6.5 | 43 | 9 | -- | -- | 4 | -- | 35000 | 232000 |
GLE50KRRB |
50 | 0.76 |
50 |
90 |
22 |
26.4 | 19 | 62.8 | 77.3 | 6.5 | 49.2 | 10 | 7 | -- | -- | -- | 35000 | 232000 |
GYE50KRRB |
50 | 0.8 |
50 |
90 |
22 |
26.4 | 19 | 62.8 | 77.3 | 6.5 | 51.6 | 8.5 | -- | -- | 4 | -- | 35000 | 232000 |
GYE50KRRB-211 |
50 | 1.1 |
50 |
100 |
25 |
29 | 22.2 | 69.8 | 85.9 | 7 | 55.6 | 9 | -- | -- | 4 | -- | 43500 | 29000 |
GYE55KRRB |
55 | 1.1 |
55 |
100 |
25 |
29 | 22.2 | 69.8 | 85.9 | 7 | 55.6 | 9 | -- | -- | 4 | -- | 43500 | 29000 |
GAY60NPPB |
60 | 1.07 |
60 |
110 |
24 |
-- | 13 | 76 | -- | 7.6 | 47 | 10 | -- | -- | 5 | -- | 52000 | 36000 |
GLE60KRRB |
60 | 0.52 |
60 |
110 |
24 |
29 | 24.6 | 76.5 | 95.9 | 7.6 | 61.9 | 12 | 9 | -- | -- | -- | 52000 | 36000 |
GYE60KRRB |
60 | 1.32 |
60 |
110 |
24 |
29 | 25.4 | 76.5 | 94.9 | 7.6 | 65.1 | 10 | -- | -- | 5 | -- | 52000 | 36000 |
GYE60KRRB-214 |
60 | 1.95 |
60 |
125 |
28 |
32 | 30.2 | 85.2 | 109 | 8.9 | 74.6 | 12 | -- | -- | 5 | -- | 62000 | 44000 |
GYE65KRRB |
65 | 2.25 |
65 |
125 |
28 |
32 | 30.2 | 85.2 | 109 | 8.9 | 74.6 | 12 | -- | -- | 5 | -- | 62000 | 44000 |
GYE65KRRB-213 |
65 | 1.84 |
65 |
120 |
23 |
27.7 | 25.4 | 80.9 | 102.2 | 7.4 | 65.1 | 10 | -- | -- | 5 | -- | 57000 | 40000 |
GLE70KRRB |
70 | 2.25 |
70 |
125 |
28 |
32 | 27 | 85.2 | 109 | 8.9 | 68.2 | 12 | 9 | -- | -- | -- | 62000 | 44000 |
GYE70KRRB |
70 | 1.95 |
70 |
125 |
28 |
32 | 30.2 | 85.2 | 109 | 8.9 | 74.6 | 12 | -- | -- | 5 | -- | 62000 | 44000 |
GYE75KRRB |
75 | 2.19 |
75 |
130 |
28 |
30.5 | 33.3 | 90 | 113 | 8.5 | 77.8 | 12 | -- | -- | 5 | -- | 62000 | 44500 |
GYE80KRRB |
80 | 2.93 |
80 |
140 |
30 |
38 | 33.3 | 97 | 120 | 8.8 | 82.6 | 12 | -- | -- | 5 | -- | 72000 | 54000 |
GYE90KRRB |
90 | 4.2 |
90 |
160 |
32 |
35 | 39.7 | 109.4 | 138 | 10 | 96 | 12 | -- | -- | 6 | -- | 96000 | 72000 |
