With Withdrawal Sleeve Series-With Withdrawal Sleeve Series

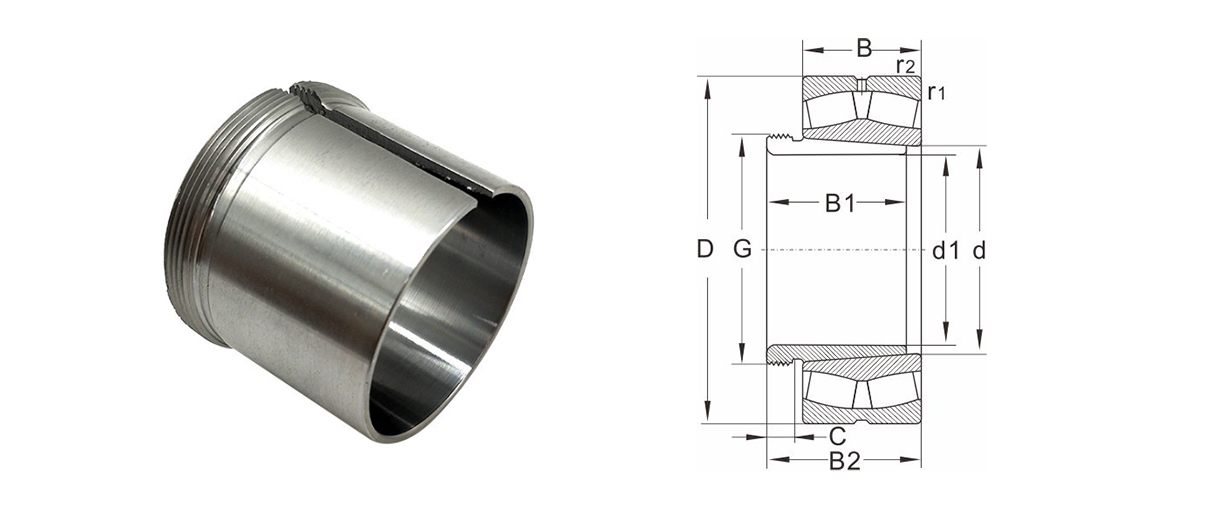

Model		Shaft	Dimensions				Rated load		Extreme speed		Size				Calculation factor				Weight [kg]
Bearings	Unloading bushings	φd1	d	D	B	r1,r2 min	Dynamic load	Static load	Grease lubrication	Oil lubrication	B1	B2	C	G	e	Y1	Y2	Yo	Bearings	Unloading bushings
22208CK	AH308	35	40	80	23	1.1	88	98	6000	7500	29	32	6	M45×1.5	0.28	2.4	3.6	2.3	0.58	0.09
21308CK	AH308	35	40	90	23	1.5	91.5	100	4500	5600	29	32	6	M45×1.5	0.26	2.6	3.9	2.6	0.8	0.09
22308CK	AH2308	35	40	90	33	1.5	129	143	4300	5300	40	43	7	M45×1.5	0.36	1.9	2.8	1.8	1.1	0.13
22209CK	AH309	40	45	85	23	1.1	93	105	5600	7000	31	34	6	M50×1.5	0.26	2.6	3.9	2.6	0.65	0.12
21309CK	AH309	40	45	100	25	1.5	108	120	4000	5300	31	34	6	M50×1.5	0.26	2.6	3.9	2.6	1.06	0.12
22309CK	AH2309	40	45	100	36	1.5	156	1760	3800	4800	44	47	7	M55×2	0.36	1.9	2.8	1.9	1.4	0.13
22210CK	AHX310	45	50	90	23	1.1	98	114	4000	5300	35	38	7	M55×2	0.24	2.8	4.2	2.8	0.72	0.13
21310CK	AHX310	45	50	110	27	2	120	130	3600	4800	35	38	7	M55×2	0.24	2.8	4.1	2.7	1.35	0.13
22310CK	AHX2310	45	50	110	40	2	190	216	3400	4300	50	53	9	M55×2	0.36	1.9	2.8	1.8	1.96	0.19
22211CK	AHX311	50	55	100	25	1.5	120	140	3800	5000	37	40	7	M60×2	0.23	2.9	4.4	2.9	0.96	0.16
21311CK	AHX311	50	55	120	29	2	135	155	3200	4300	37	40	7	M60×2	0.24	2.8	4.1	2.7	1.71	0.16
22311CK	AHX2311	50	55	120	43	2	224	255	3000	4000	54	57	10	M60×2	0.36	1.9	2.8	1.8	2.47	0.26
22212CK	AHX312	55	60	110	28	1.5	145	175	3400	4500	40	43	8	M65×2	0.24	2.8	4.2	2.8	1.25	0.19
21312CK	AHX312	55	60	130	31	2	150	180	3000	4000	40	43	8	M65×2	0.24	2.9	4.3	2.8	2.12	0.19
22312CK	AHX2312	55	60	130	46	2	260	300	2800	3600	58	61	11	M65×2	0.34	1.9	2.8	1.9	3.09	0.3
22213CK	AH313	60	65	120	31	1.5	170	204	3000	4000	42	45	8	M75×2	0.23	2.8	4.2	2.8	1.69	0.25
21313CK	AH313	60	65	140	33	2.1	196	228	2800	3800	42	45	8	M75×2	0.23	2.8	4.2	2.8	2.67	0.25
22313CK	AH2313	60	65	140	48	2.1	290	355	2600	3400	61	64	12	M75×2	0.34	2	3	2	3.8	0.39
22214CK	AH314	65	70	125	31	1.5	179	225	3600	4500	43	47	8	M80×2	0.22	2.9	4.4	2.9	1.8	0.28
21314CK	AH314	65	70	150	35	2.1	207	360	2600	3400	43	47	8	M80×2	0.23	2.9	4.4	2.9	3.23	0.28
22314CK	AHX2314	65	70	150	51	2.1	325	375	2200	3000	64	68	12	M80×2	0.34	2	3	2	4.53	0.46
22215CK	AH315	70	75	130	31	1.5	183	236	2800	3800	45	49	8	M85×2	0.22	3.1	4.6	3	1.92	0.31
21315CK	AH315	70	75	160	37	2.1	250	305	2400	3200	45	49	8	M85×2	0.23	2.9	4.4	2.9	3.86	0.31
22315CK	AHX2315	70	75	160	55	2.1	375	440	2200	3000	68	72	12	M85×2	0.34	2	3	1.9	5.52	0.53
22216CK	AH316	75	80	140	33	2	208	260	2600	3400	48	52	8	M90×2	0.22	3.1	4.7	3.1	2.34	0.37
21316CK	AH316	75	80	170	39	2.1	275	340	2200	3000	48	52	8	M90×2	0.23	2.9	4.4	2.9	4.6	0.37
22316CK	AHX2316	75	80	170	58	2.1	410	500	1800	2400	71	75	12	M90×2	0.34	2	3	1.9	6.53	0.6
22217CK	AHX317	80	85	150	36	2	250	325	2400	3200	52	56	9	M95×2	0.22	3	4.5	3	2.9	0.43
21317CK	AHX317	80	85	180	41	3	305	375	2200	2800	52	56	9	M95×2	0.22	3	4.5	2.9	5.33	0.43
22317CK	AHX2317	80	85	180	60	3	455	540	1800	2400	74	78	13	M95×2	0.33	2	3	2	7.48	0.65
22218CK	AHX318	85	90	160	40	2	285	360	2200	3000	53	57	9	M100×2	0.23	2.9	4.3	2.8	3.64	0.46
23218CK	AHX2318	85	90	160	52.4	2	340	485	2200	3000	63	67	10	M100×2	0.31	2.2	3.3	2.2	4.85	0.57
21318CK	AHX318	85	90	190	43	3	335	415	2200	2800	53	57	9	M100×2	0.22	3	4.5	2.9	6.2	0.46
22318CK	AH2318	85	90	190	64	3	510	620	1800	2400	79	83	14	M100×2	0.33	2	3	2	8.83	0.76
22219CK	AHX319	90	95	170	43	2.1	315	400	2200	2800	57	61	10	M105×2	0.24	2.9	4.3	2.8	4.39	0.54
21319CK	AHX319	90	95	200	45	3	360	450	2000	2600	57	61	10	M105×2	0.22	3	4.5	3	7.16	0.54
22319CK	AHX2319	90	95	200	67	3	580	700	1700	2200	85	89	16	M105×2	0.33	2	3	2	10.2	0.9
23120K.MB	AHX3120	95	100	165	52	2	355	540	2000	3000	64	68	11	M110×2	0.28	2.4	3.5	2.3	4.87	0.66
22220CK	AHX320	95	100	180	46	2.1	360	465	2200	2800	59	63	10	M110×2	0.24	2.8	4.3	2.8	5.27	0.58
23220CK	AHX2320	95	100	180	60.3	2.1	465	655	1700	2200	73	77	11	M110×2	0.31	2.2	3.3	2.1	7.06	0.76
22320CK	AHX2320	95	100	215	73	3	655	815	1500	2000	90	94	16	M110×2	0.34	2	3	2	13	1
23122K.MB	AHX3122	105	110	180	56	2	410	640	1800	2400	68	72	11	M120×2	0.28	2.4	3.6	2.3	6.07	0.76
24122CK30	AH24122	105	110	180	69	2	520	880	1200	1600	82	91	13	M115×2	0.35	1.9	2.9	1.9	7.65	0.73
22222CK	AHX3122	105	110	200	53	2.1	455	585	2000	2800	68	72	11	M120×2	0.25	2.7	4	2.7	7.46	0.76
23222CK	AHX3222	105	110	200	69.8	2.1	620	850	1400	1800	82	86	11	M120×2	0.33	2.1	3.1	2	10.1	0.88
22322K.MB	AHX2322	105	110	240	80	3	800	1060	1400	1900	98	102	16	M125×2	0.33	2.1	3.1	2	18.4	1.35
23024CK	AHX3024	115	120	180	46	2	360	570	2200	3000	60	64	13	M130×2	0.22	3	4.5	3	4.61	0.75
24024CK30	AH24024	115	120	180	60	2	455	800	1500	2000	73	82	13	M125×2	0.29	2.3	3.4	2.3	5.85	0.65
23124K.MB	AHX3124	115	120	200	62	2	495	770	1700	2200	75	79	12	M130×2	0.28	2.4	3.6	2.3	8.33	0.94
24124CK30	AH24124	115	120	200	80	2	630	1050	1000	1300	93	102	13	M130×2	0.37	1.8	2.7	1.8	11	1
22224CK	AHX3124	115	120	215	58	2.1	540	720	1700	2200	75	79	12	M125×2	0.25	2.7	4	2.7	9.39	0.94
23224CK	AHX3224	115	120	215	76	2.1	680	1000	1300	1700	90	94	13	M135×2	0.33	2	3	2	12.5	1.11
22324K.MB	AHX2324	115	120	260	86	3	900	1400	1300	1700	105	109	17	M135×2	0.33	2.1	3.1	2	22.6	1.65
23026CK	AHX3026	125	130	200	52	2	455	720	1900	2600	67	71	14	M140×2	0.23	2.9	4.4	2.9	6.54	0.93
24026CK30	AH24026	125	130	200	69	2	530	900	1200	1600	83	93	14	M135×2	0.31	2.2	3.3	2.2	8.56	0.84
23126K.MB	AHX3126	125	130	210	64	2	540	860	1500	2000	78	82	12	M140×2	0.28	2.4	3.6	2.4	9.19	1.1
24126CK30	AH24126	125	130	210	80	2	650	1100	900	1200	94	104	14	M140×2	0.34	2	2.9	1.9	11.7	1.11
22226CK	AHX3126	125	130	230	64	3	630	880	1700	2200	78	82	12	M140×2	0.26	2.6	3.9	2.6	11.6	1.1
23226CK	AHX3226	125	130	230	80	3	765	1140	1300	1700	98	102	15	M145×2	0.33	2.1	3.1	2	15	1.55
22326K.MB	AHX2326	125	130	280	93	4	1040	1340	1200	1600	115	119	19	M1452×	0.33	2.1	3.1	2	28	2
23028CK	AHX3028	135	140	210	53	2	480	780	1900	2600	68	73	14	M150×2	0.22	3.1	4.6	3	7.05	1
24028CK30	AH24028	135	140	210	69	2	550	990	1100	1500	83	93	14	M145×2	0.29	2.3	3.5	2.3	9.06	0.95
23128K.MB	AHX3128	135	140	225	68	2.1	600	990	1400	1800	83	88	14	M150×2	0.27	2.5	3.7	2.4	11.1	1.3
24128CK30	AH24128	135	140	225	85	2.1	740	1380	1100	1500	99	109	14	M150×2	0.34	2	2.9	1.9	14.1	1.3
22228CK	AHX3128	135	140	250	68	3	730	1080	1400	1900	83	88	14	M150×2	0.25	2.7	4	2.6	14.7	1.3
23228CK	AHX3228	135	140	250	88	3	915	1370	1100	1400	104	109	15	M155×3	0.33	2	3	2	19.5	1.85
22328K.MB	AHX2328	135	140	300	102	4	1220	1600	1100	1400	125	130	20	M155×3	0.34	2	3	2	35.1	2.35
23030CK	AHX3030	145	150	225	56	2.1	530	865	1800	2400	72	77	15	M160×3	0.22	3.1	4.6	3	8.48	1.15
24030CK30	AH24030	145	150	225	75	2.1	620	1140	1300	1700	90	101	15	M155×3	0.29	2.3	3.5	2.3	11.2	1.05
23130K.MB	AHX3130	145	150	250	80	2.1	800	1320	1300	1700	96	101	15	M165×3	0.29	2.3	3.5	2.3	16.8	1.8
24130CK30	AH24130	145	150	250	100	2.1	915	1560	1100	1500	115	126	15	M160×3	0.4	1.7	2.5	1.6	21.5	1.55
22230CK	AHX3130	145	150	270	73	3	850	1200	1400	1800	96	101	15	M165×3	0.25	2.7	3.4	2.6	18.7	1.8
23230CK	AHX3230	145	150	270	96	3	1030	1610	1000	1300	114	119	17	M165×3	0.33	2	3	2	25	2.2
22330K.MB	AHX2330	145	150	320	108	4	1370	1830	1100	1500	135	140	24	M165×3	0.33	2	3	2	42.1	2.8
23032CK	AH3032	150	160	240	60	2.1	600	1000	1600	2000	77	82	16	M170×3	0.22	3.1	4.6	3	11	2.05
24032CK30	AH24032	150	160	240	80	2.1	720	1320	1000	1300	95	106	15	M170×3	0.29	2.3	3.4	2.3	14.6	2.3
23132K.MB	AH3132	150	160	270	86	2.1	930	1510	1200	1600	103	108	16	M180×3	0.29	2.3	3.5	2.3	22	2.87
24132CK30	AH24132	150	160	270	109	2.1	1060	1800	1000	1400	124	135	15	M170×3	0.41	1.7	2.5	1.6	28.4	3.05
22232CK	AH3132	150	160	290	80	3	965	1370	1300	1700	103	108	16	M180×3	0.26	2.6	3.9	2.6	24.6	2.87
23232CK	AH3232	150	160	290	104	3	1180	1830	1200	1600	124	130	20	M180×3	0.34	2	3	2	33.9	4
22332K.MB	AH2332	150	160	340	114	4	1430	1900	1000	1300	140	146	24	M180×3	0.37	1.8	2.7	1.8	55.8	4.72
23034CK	AH3034	160	170	260	67	2.1	735	1200	1500	1900	85	90	17	M180×3	0.23	3	4.4	2.9	14.5	2.4
24034K30.MB	AH24034	160	170	260	90	2.1	850	1560	1000	1300	106	117	16	M180×3	0.34	2	3	2	20.6	2.7
23134K.MB	AH3134	160	170	280	88	2.1	990	1650	1100	1500	104	109	16	M190×3	0.28	2.4	3.5	2.3	23.6	3.04
24134CK30	AH24134	160	170	280	109	2.1	1060	1830	750	1000	125	136	16	M180×3	0.39	1.7	2.6	1.7	29.6	3.25
22234CK	AH334	160	170	310	86	4	1100	1530	1200	1600	104	109	16	M190×3	0.26	2.6	3.9	2.5	29.2	3.04
23234CK	AH2334	160	170	310	110	4	1370	2120	1100	1500	134	140	24	M190×3	0.33	2	3	2	39.7	4.8
22334K.MB	AH2334	160	170	360	120	4	1600	2120	900	1200	146	152	24	M190×3	0.37	1.8	2.7	1.8	65	5.25
23036CK	AH3036	170	180	280	74	2.1	865	1430	1400	1800	92	98	17	M190×3	0.23	2.9	4.3	2.8	18.6	2.8
24036K30.MB	AH24036	170	180	280	100	2.1	1000	1830	900	1200	116	127	16	M190×3	0.36	1.9	2.8	1.9	26.5	3.2
23136CK	AH3136	170	180	300	96	3	1160	1930	1100	1400	116	122	19	M200×3	0.29	2.3	3.5	2.3	29.7	3.76
24136CK30	AH24136	170	180	300	118	3	1250	2200	700	950	134	145	16	M190×3	0.4	1.7	2.5	1.6	37.5	3.68
22236CK	AH2236	170	180	320	86	4	1010	1560	1100	1500	105	110	17	M200×3	0.26	2.6	3.9	2.5	37.5	5.25
23236CK	AH3236	170	180	320	112	4	1420	2320	1100	1500	140	146	25	M200×3	0.33	2.1	3.1	2	42.6	5.32
22336K.MB	AH2336	170	180	380	126	4	1760	2360	850	1100	154	160	26	M200×3	0.7	1.8	2.7	1.8	75.2	5.83
23038CK	AH3038	180	190	290	75	2.1	915	1530	1300	1700	96	102	18	Tr205×4	0.23	3	4.4	2.9	20.1	3.32
24038K.30MB	AH24038	180	190	290	100	2.1	1040	1960	850	1100	118	131	18	M200×3	0.34	2	3	2	28	3.55
23138K.MB	AH3138	180	190	320	104	3	1320	2200	1100	1400	125	131	20	Tr210×4	0.3	2.3	3.4	2.2	37.5	4.9
24138CK30	AH24138	180	190	320	128	3	1400	2500	670	900	146	159	18	M200×3	0.41	1.7	2.5	1.6	46.2	4.28
22238CK	AH2238	180	190	340	92	4	1200	1830	1100	1400	112	117	18	Tr210×4	0.26	2.6	3.9	2.5	35.5	4.25
23238CK	AH3238	180	190	340	120	4	1750	2880	850	1100	145	152	25	Tr210×4	0.36	1.9	2.8	1.8	53.9	5.9
22338K.MB	AH2338	180	190	400	132	5	1860	2500	750	1000	160	167	26	Tr210×4	0.37	1.8	2.7	1.8	87.8	6.63
23040CK	AH3040	190	200	310	82	2.1	1060	1760	1300	1700	102	108	19	Tr215×4	0.23	2.9	4.3	2.8	25.3	3.85
24040K30	AH24040	190	200	310	109	2.1	1400	2280	850	1100	127	140	18	Tr210×4	0.35	1.9	2.9	1.9	35.2	4
24140K.MB	AH3140	190	200	340	112	3	1320	2280	900	1400	134	140	21	Tr220×4	0..35	2	2.9	1.9	48.2	5.49
24140CK30	AH24140	190	200	340	140	3	1700	3000	800	1000	158	171	18	Tr210×4	0.42	1.6	2.4	1.6	57.6	5.05
22240CK	AH2240	190	200	360	98	4	1250	1930	1100	1400	118	223	19	Tr220×4	0.26	2.6	3.9	2.5	42.5	4.7
23240CK	AH3240	190	200	360	128	4	1620	2590	750	1000	153	160	24	Tr220×4	0.37	1.8	2.7	1.8	64.3	6.6
22340K.MB	AH2340	190	200	420	138	5	1910	2750	670	900	170	177	30	Tr220×4	0.36	1.9	2.8	1.8	99.3	7.6
23044K.MB	AH3044	200	220	340	90	3	1100	2000	900	1200	111	117	20	Tr235×4	0.26	2.6	3.8	2.5	38.4	7.4
24044K30	AH24044	200	220	340	118	3	1370	2600	750	950	138	152	20	Tr230×4	0.34	2	2.9	1.9	49	8.2
24144K30	AH24144	200	220	370	150	4	1800	3300	700	900	170	184	20	Tr230×4	0.41	1.6	2.4	1.6	75.5	10
23144K.MB	AH3144	200	220	370	120	4	1515	2509	800	1000	145	151	23	Tr240×4	0.33	2	3	2	64.8	10.4
22244CK	AH3144	200	220	400	108	4	1520	2300	900	1200	145	151	23	Tr240×4	0.27	2.5	3.7	2.5	59	9.3
23244CK	AH2344	200	220	400	144	4	2040	3380	670	900	181	189	30	Tr240×4	0.37	1.8	2.7	1.8	95	13.5
22344CK	AH2344	200	220	460	145	5	2320	3350	700	900	181	189	30	Tr240×4	0.35	2	2.9	1.9	133	13.5
23048CK.MB	AH3048	220	240	360	92	3	1160	2200	800	1000	116	123	21	Tr260×4	0.25	2.7	4.1	2.7	42.7	8.75
24048K30	AH24048	220	240	360	118	3	1460	2841	700	900	138	153	20	Tr250×4	0.32	2.1	3.1	2.1	52.6	9
24148K30	AH24148	220	240	400	160	4	1780	3109	530	700	180	195	20	Tr260×4	0.41	1.7	2.5	1.6	93.1	12.5
23148K.MB	AH3148	220	240	400	128	4	1705	2863	750	950	154	161	25	Tr260×4	0.33	2.1	3.1	2	78.4	12
22248CK	AH3148	220	240	440	120	4	1845	2763	850	1100	154	161	25	Tr260×4	0.27	2.5	3.7	2.5	82.5	12
23248CK	AH2348	220	240	440	160	4	2450	4250	630	850	189	197	30	Tr260×4	0.37	1.8	2.7	1.8	125	15.5
22348K.MB	AH2348	220	240	500	155	5	2650	3900	560	750	189	197	30	Tr260×4	0.35	2	2.9	1.9	169	15.5
23052K.MB	AH3052	240	260	400	104	4	1500	2800	750	950	128	135	23	Tr280×4	0.26	2.6	3.9	2.6	59.7	10.7
24052K30	AH24052	240	260	400	140	4	1775	3494	600	800	162	178	22	Tr270×4	0.35	1.9	2.9	1.9	77.8	11.8
24152K30	AH24152	240	260	400	180	4	2500	5000	480	630	202	218	22	Tr280×4	0.42	1.6	2.4	1.6	129	15.4
23152K.MB	AH3152	240	260	400	144	4	2153	3673	670	850	172	179	26	Tr290×4	0.33	2	3	2	109	16
22252K.MB	AH2252	240	260	480	130	5	2190	3300	750	1000	155	179	26	Tr290×4	0.27	2.5	3.7	2.5	105	12.5
22352CK	AH2352	240	260	540	165	6	3000	4400	600	750	205	213	30	Tr290×4	0.34	2	3	2	205	19.6
23056K.MB	AH3056	260	280	420	106	4	1560	3000	700	900	131	139	24	Tr300×4	0.25	2.7	4.1	2.7	64.5	12
24056K30	AH24056	260	280	420	140	4	2000	4000	560	750	162	179	22	Tr290×4	0.33	2	3	2	83.1	12.8
23156K.MB	AH3156	260	280	460	146	5	2295	4050	530	800	175	183	28	Tr310×5	0.32	2.1	3.2	2.1	117	17.5
24156K30	AH24156	260	280	460	180	5	2635	4848	630	530	202	219	22	Tr300×4	0.39	1.7	2.5	1.7	134	16.3
23256K.MB	AH2356	260	280	500	176	5	2806	4645	400	630	212	220	30	Tr310×5	0.33	1.9	2.8	1.8	174	21.6
22356CK	AH2356	260	280	580	175	6	3530	5208	480	670	212	220	30	Tr310×5	0.33	2	3	2	254	21.6
23060K.MB	AH3060	280	300	460	118	4	1960	3650	530	800	145	153	26	Tr320×5	0.25	2.7	4	2.6	88	14.4
24060K30	AH24060	280	300	460	160	4	2385	4702	630	700	184	202	24	Tr310×5	0.35	2	2.9	1.9	116	15.5
23160K.MB	AH3160	280	300	500	160	5	2635	4485	560	750	192	200	30	Tr330×5	0.33	2.1	3.1	2	151	20.8
24160K30	AH24160	280	300	500	200	5	3213	6011	600	560	224	242	24	Tr320×5	0.4	1.7	2.5	1.6	179	19.5
23064K.MB	AH3064	300	320	480	121	4	2040	4000	430	750	149	157	27	Tr345×5	0.25	2.7	4.1	2.7	96	16
24064K30	AH24064	300	320	480	160	4	2500	5240	600	670	184	202	24	Tr340×5	0.33	2.1	3.1	2	123	16.6
23164K.MB	AH3164	300	320	540	176	5	3115	6000	530	670	209	217	31	Tr350×5	0.34	2	2.9	1.9	196	24.5
24164K30	AH24164	300	320	540	218	5	3750	7300	530	530	242	260	24	Tr340×5	0.41	1.7	2.5	1.6	225	21.4
23264K.MB	AH3264	300	320	580	208	5	3900	6950	400	560	246	254	36	Tr350×5	0.37	1.8	2.7	1.8	278	30.6
23068K.MB	AH3068	320	340	520	133	5	2360	4500	430	700	262	171	28	Tr365×5	0.25	2.7	4	2.6	125	19.5
24068K30	AH24068	320	340	520	180	5	3100	6550	560	600	206	225	26	Tr360×5	0.34	2	2.9	1.9	165	21.7
23168K.MB	AH3168	320	340	580	190	5	3605	6409	480	530	225	234	33	Tr370×5	0.34	2	2.9	1.9	245	29
24168K30	AH24168	320	340	580	243	5	4400	8500	450	560	269	288	26	Tr360×5	0.43	1.6	2.3	1.5	293	27.1
23072K.MB	AH3072	340	360	540	134	5	2450	4800	530	670	167	176	30	Tr385×5	0.25	2.7	4.1	2.7	132	21
24072K30	AH24072	340	360	540	180	5	3110	6530	480	630	206	226	26	Tr380×5	0.31	2.2	3.3	2.2	140	20.2
23172K.MB	AH3172	340	360	600	192	5	3740	7010	480	600	229	238	35	Tr400×5	0.33	2.1	3.1	2	261	33
24172K30	AH24172	340	360	600	243	5	4500	9000	430	530	269	289	26	Tr380×5	0.41	1.6	2.4	1.6	308	29.6
23272K.MB	AH3272	340	360	650	232	6	4880	8490	430	560	274	283	40	Tr400×5	0.38	1.8	2.7	1.7	389	41.5
23076K.MB	AH3076	360	380	560	135	5	2550	5300	500	630	170	180	31	Tr410×5	0.24	2.8	4.2	2.8	140	23.5
24076K30	AH24076	360	380	560	180	5	3150	6710	450	600	208	228	28	Tr400×5	0.3	2.3	3.4	2.2	145	23.5
23176K.MB	AH3176	360	380	620	194	5	3740	7540	450	560	232	242	36	Tr420×5	0.32	2.1	3.2	2.1	278	36
24176K.MB	AH24176	360	380	620	243	5	4650	9500	400	500	271	291	28	Tr430×5	0.39	1.7	2.5	1.7	321	31
23276K.MB	AH3276	360	380	680	240	6	5050	9660	400	530	284	294	42	Tr420×5	0.37	1.8	2.7	1.8	436	45.5
23080K.MB	AH3080	380	400	600	148	5	3050	6200	450	560	183	193	33	Tr430×5	0.24	2.8	4.4	2.7	179	27
24020	AH24080	380	400	600	200	5	3610	7545	430	460	228	248	28	Tr420×5	0.3	2.3	3.4	2.2	200	27
23180K.MB	AH3180	380	400	650	200	6	4100	7730	430	530	240	250	38	Tr440×5	0.31	2.2	3.2	2.1	310	39
24180K30	AH24180	380	400	650	250	6	5100	10400	380	480	278	298	28	Tr420×5	0.39	1.7	2.6	1.7	360	35
23280K.MB	AH3280	380	400	720	256	6	5700	10800	380	500	302	312	44	Tr440×5	0.38	1.8	2.7	1.7	517	51.5
23084K.MB	AH3084	400	420	620	150	5	3150	6500	450	560	186	196	34	Tr450×5	0.24	2.3	4.2	2.8	189	29
24084K30	AH24084	400	420	620	200	5	3740	8800	380	480	230	252	30	Tr440×5	0.3	2.2	3.4	2.2	205	29
23184CK	AH3184	400	420	700	224	6	4600	9000	400	500	266	276	40	Tr460×5	0.33	1.7	3	2	409	46
24184K30	AH24184	400	420	700	280	6	6100	12500	360	450	310	332	30	Tr470×5	0.4	1.8	2.5	1.6	483	40.3
23284K.MB	AH3284	400	420	760	272	7.5	6550	11717	360	480	321	331	46	Tr460×5	0.38	2.8	2.6	1.7	612	58.9
23088K.MB	AHX3088	420	440	650	157	6	3400	7100	430	530	194	205	35	Tr470×5	0.24	2.3	4.2	2.8	216	32
24088K30	AHX24088	420	440	650	212	6	4080	8800	360	450	242	264	30	Tr460×5	0.3	2	3.4	2.2	240	32
23188CK	AHX3188	420	440	720	226	6	5000	10000	400	500	270	281	42	Tr480×5	0.32	1.7	3.1	2.1	429	49.8
24188K30	AHX24188	420	440	720	280	6	6400	13200	340	430	310	332	30	Tr460×5	0.38	1.8	2.6	1.7	496	42.5
23288K.MB	AHX3288	420	440	790	280	7.5	7100	13400	360	450	330	341	48	Tr480×5	0.37	2.8	2.7	1.8	671	63.8
23092K.MB	AHX3092	440	460	680	163	6	3650	7650	400	500	202	213	37	Tr490×5	0.24	2.3	4.2	2.8	245	35.2
23192CK	AHX3192	440	460	760	240	7.5	5760	11025	360	450	285	296	43	Tr510×6	0.32	2.1	3.2	2.1	510	57.9
24192K30	AH24192	440	460	760	300	7.5	7250	14600	280	380	332	355	32	Tr480×5	0.37	1.8	2.7	1.8	550	50
23292K.MB	AHX3292	440	460	830	296	7.5	7560	13970	340	430	249	360	50	Tr510×6	0.37	1.8	2.7	1.8	795	74.5
23096K.MB	AHX3096	460	480	700	165	6	3800	8150	380	480	205	217	38	Tr520×6	0.23	2.9	4.3	2.8	259	39.2
23196CK	AHX3196	460	480	790	248	7.5	5800	11800	360	450	295	307	45	Tr530×6	0.32	2.1	3.2	2.1	567	63.1
24196K30	AH24196	460	480	790	308	7.5	7250	15000	280	360	340	363	32	Tr500×5	0.37	1.8	2.7	1.8	595	51.5
23296K.MB	AHX3296	460	480	870	310	7.5	8800	17000	340	430	364	376	52	Tr530×6	0.37	1.8	2.7	1.8	914	82.1
239/500K.MB	AH39/500	480	500	670	128	5	2500	6090	380	380	162	172	32	Tr520×6	0.17	3.9	5.8	3.8	161	28
230/500K.MB	AHX30/500	480	500	720	167	6	3900	8500	380	380	209	221	40	Tr540×6	0.22	3	4.5	2.9	272	42.5
231/500K.MB	AHX31/500	480	500	830	264	7.5	6550	13200	340	340	313	325	47	Tr550×6	0.32	2.1	3.1	2.1	670	70.9
241/500K.MB	AH241/500	480	500	830	325	7.5	8630	17000	260	260	360	383	35	Tr530×6	0.37	1.8	2.7	1.8	735	57
232/500K30	AHX32/500	480	500	920	336	7.5	9650	18300	320	320	393	405	54	Tr550×6	0.38	1.8	2.7	1.7	1105	94.6
239/530K.MB	AH39/530	500	530	710	136	5	2850	6755	360	360	175	185	37	Tr550×6	0.18	3.9	5.7	3.8	202	43.4
230/530K.MB	AH30/530	500	530	780	185	6	4400	9500	340	340	230	242	45	Tr560×6	0.22	3	4.5	3	372	61.9
241/530K30	AH241/530	500	530	870	335	7.5	8650	18400	240	320	370	394	35	Tr550×6	0.37	1.8	2.7	1.8	820	86
239/560K.MB	AH39/560	530	560	750	140	5	3100	7350	340	430	180	190	37	Tr580×6	0.17	4	5.9	3.9	230	47.4
230/560K.MB	AH30/560	530	560	820	195	6	5100	11000	320	400	240	252	45	Tr590×6	0.23	2.9	4.4	2.9	427	68.6
241/560K30	AH241/560	530	560	920	355	7.5	10500	21600	120	160	393	417	38	Tr580×6	0.35	1.9	2.9	1.8	970	97
239/600K.MB	AH39/600	560	600	800	150	5	3450	8650	320	400	192	202	38	Tr625×6	0.17	4	5.9	3.9	277	56.1
230/600K.MB	AH30/600	560	600	870	200	6	5700	12500	300	380	245	259	45	Tr630×6	0.22	3.1	4.6	3	481	75.4
241/600K30	AH241/600	560	600	980	375	7.5	10700	22800	220	280	413	439	38	Tr630×6	0.35	1.9	2.9	1.8	1180	120
239/630K.MB	AH39/630	600	630	850	165	6	4050	3800	300	380	210	232	40	Tr655×6	0.18	3.8	5.7	3.7	344	62.8
230/630K.MB	AH30/630	600	630	920	212	7.5	6300	14000	260	340	258	272	46	Tr670×6	0.22	3	4.5	2.9	576	87.7
241/630K30	AH241/630	600	630	1030	400	7.5	12700	27000	100	140	440	466	40	Tr650×6	0.37	1.8	2.7	1.8	1380	130
239/670K.MB	AH39/670	630	670	900	170	6	4300	10600	280	360	216	228	41	Tr695×6	0.17	4	5.9	3.9	412	85.5
230/670K.MB	AH30/670	630	670	980	230	7.5	7200	16000	260	340	280	294	50	Tr710×7	0.22	3	4.5	2.9	726	124
239/710K.MB	AH39/710	670	710	950	180	6	4800	12000	260	340	228	240	43	Tr740×7	0.18	3.8	5.7	3.8	488	102
230/710K.MB	AH30/710	670	710	1030	236	7.5	7650	17000	260	340	286	302	50	Tr750×7	0.22	3.1	4.6	3	803	135
239/750K.MB	AH39/750	710	750	1000	185	6	5200	12900	260	340	234	246	44	Tr780×7	0.17	4	5.9	3.9	548	111
239/800K.MB	AH39/800	750	800	1060	195	6	5850	15000	240	320	245	257	45	Tr830×7	0.17	4.1	5.9	4	653	147
230/800K.MB	AH30/800	750	800	1150	258	7.5	9300	21200	220	300	308	326	50	Tr850×7	0.22	3.1	6	3	1106	200
239/900K.MB	AH39/900	850	900	1180	206	6	6550	17120	200	280	365	277	51	Tr930×8	0.16	4.3	6.4	4.2	605	182
230/900K.MB	AH30/900	850	900	1280	280	7.5	1100	26500	200	280	335	355	55	Tr950×8	0.22	3.1	4.7	3.1	1210	248
239/950K.MB	AH39/950	900	950	1250	224	7.5	7500	20000	190	260	282	297	50	Tr980×8	0.16	4.2	6.3	4.1	776	206

Ningbo DHK Precision Bearing Co., Ltd.

0+

Years Experience Working

0+

Customer Service

0+

Patented Technology

CERTIFICATE

DHK has passed IATF16949 quality system certification and ISO14001 environmental management system certification；and DHK is a national high-tech enterprise.

Latest News

What are the key advantages of using Four Row Cylindrical Roller Bearings in heavy-duty applications?

2024-11-18 Industry News

Four Row Cylindrical Roller Bearings are specifically designed to handle both large radial and axial loads simultaneously, making them ideal for heavy-duty applications. The unique...
MORE
In what types of machinery or systems are paired single-row tapered roller bearings most commonly used?

2024-11-11 Industry News

In the automotive sector, paired single-row tapered roller bearings are commonly used in wheel hubs and axle assemblies. These bearings are essential for supporting both the radial...
MORE
How does the internal geometry of spherical roller bearings impact their load-carrying capacity?

2024-11-04 Industry News

One of the defining features of spherical roller bearings is the arrangement of two rows of rolling elements (typically cylindrical or barrel-shaped rollers) that run parallel to t...
MORE
What are the key benefits of using spherical roller bearings in heavy-duty applications?

2024-10-28 Industry News

Spherical roller bearings are designed to support both high radial and axial loads simultaneously, making them ideal for heavy-duty applications. Their unique internal geometry, wh...
MORE
How can the misalignment of angular contact ball bearings affect their operational efficiency?

2024-10-21 Industry News

Misalignment leads to uneven loading of the bearing's rolling elements, which disrupts their optimal contact with the raceways. This condition results in increased friction as the ...
MORE
How can improper installation affect the performance of paired single row tapered roller bearings?

2024-10-14 Industry News

Premature Wear: Improper installation of paired single row tapered roller bearings can lead to uneven contact patterns and load distribution, which are critical to their performanc...
MORE

Tel
+86-574-86597612
Email
ken@dhk-intl.com
Phone
+86-13957821917
Fax
+86-574-86597652

Add

Building 31, Chuang E Huigu, No.777, West Zhongguan RoadZhenhai Economic Development Zone, Ningbo, Zhejiang, China

Web Menu

Product Search

Language

Exit Menu

With Withdrawal Sleeve Series-With Withdrawal Sleeve Series OEM/ODM

Categories

How Can We Help You?

With Withdrawal Sleeve Series-With Withdrawal Sleeve Series

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the key advantages of using Four Row Cylindrical Roller Bearings in heavy-duty applications?

In what types of machinery or systems are paired single-row tapered roller bearings most commonly used?

How does the internal geometry of spherical roller bearings impact their load-carrying capacity?

What are the key benefits of using spherical roller bearings in heavy-duty applications?

How can the misalignment of angular contact ball bearings affect their operational efficiency?

How can improper installation affect the performance of paired single row tapered roller bearings?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add

Web Menu

Product Search

Language

Share

Exit Menu

With Withdrawal Sleeve Series-With Withdrawal Sleeve Series OEM/ODM

Categories

How Can We Help You?

With Withdrawal Sleeve Series-With Withdrawal Sleeve Series

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the key advantages of using Four Row Cylindrical Roller Bearings in heavy-duty applications?

In what types of machinery or systems are paired single-row tapered roller bearings most commonly used?

How does the internal geometry of spherical roller bearings impact their load-carrying capacity?

What are the key benefits of using spherical roller bearings in heavy-duty applications?

How can the misalignment of angular contact ball bearings affect their operational efficiency?

How can improper installation affect the performance of paired single row tapered roller bearings?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add
