Double Row Cam Rollers-Double Row Cam Rollers

With dust caps on both sides
With contact seals on both sides

Design Variants
Cage
Tolerance
Internal Clearance

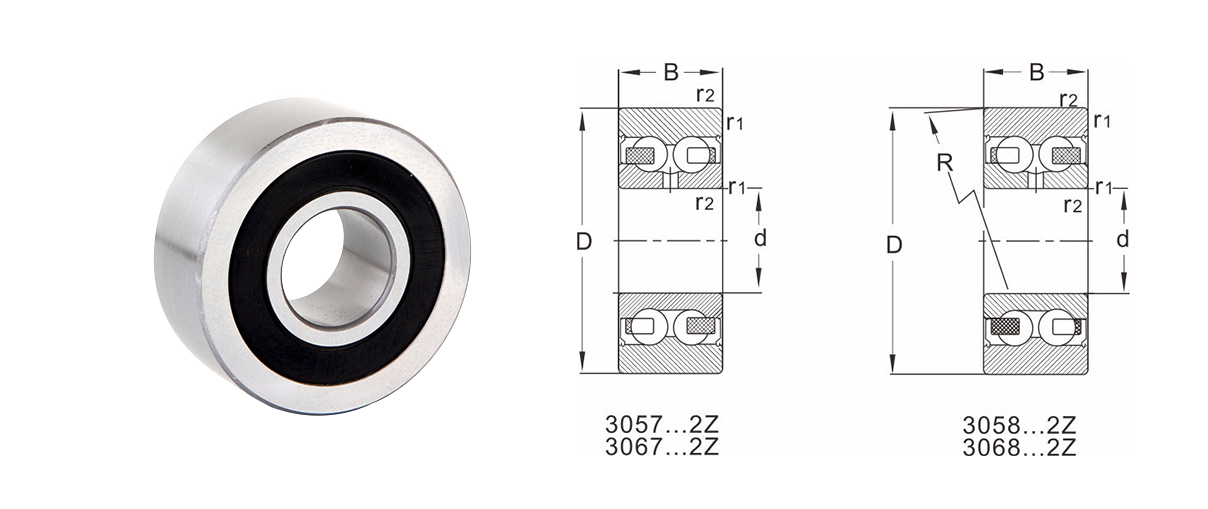

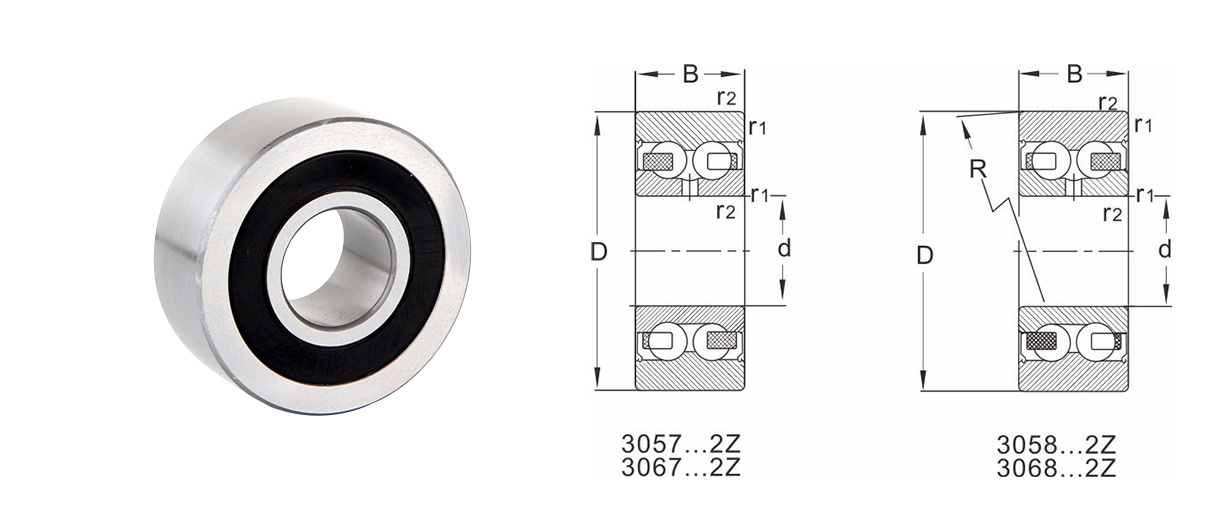

DHK double row angular contact ball roller has two kinds, one is straight diameter 3057... And 3067... Series, another is the arc surface outer diameter of 3058... And 3068... Series, 3057... And 3058... The interior design of the series is the same as the 32... Series double row angular contact ball bearings; 3067... And 3068... The interior design of the series is the same as 33... Series double row angular contact ball bearings.

The contact Angle of DHK double-row angular contact ball bearing roller is 25°, and the radius of the circular arc surface outer diameter roller is R=400mm.

Most of these bearings are dust-proof covers on both sides (suffix.2z) and contact sealing rings on both sides (suffix.2RSR).
DHK double row angular contact ball roller is made of plastic cage.

DHK double row angular contact ball roller uses ordinary tolerance, for the circular surface outer diameter of the roller diameter tolerance is twice the standard value.

Tolerances for DHK double row angular contact ball bearings (excluding tapered roller bearings)

All dimensions shown in (mm):

Tolerances in (um):

Inner Ring

PN/(Normal)

Nominal Bore diameter		Deviation dmp	Variation Vdp Series			Variation Vdmp	Taper bore 1:12 Deviation/ Variation
>	<=	△dmp	7．8．9	0．1	2．3．4	Vdmp	△dmp	△d1mp-dmp	Vdp
2.5 10		0 -8	10	8	6	6	+15 0	+15 0	10
10 18		0 -8	10	8	6	6	+18 0	+18 0	10
18 30		0 -10	13	10	8	8	+21 0	+21 0	13
30 50		0 -12	15	12	9	9	+25 0	+25 0	15
50 80		0 -15	19	19	11	11	+30 0	+30 0	19
80 120		0 -20	25	25	15	15	+35 0	+35 0	25
120 180		0 -25	31	31	19	19	+40 0	+40 0	31
180 250		0 -30	38	38	23	23	+46 0	+46 0	38
250 315		0 -35	44	44	26	26	+52 0	+52 0	44
315 400		0 -40	50	50	30	30	+57 0	+57 0	50
400 500		0 -45	56	56	34	34	+63 0	+63 0	56
500 630		0 -50	63	63	38	38	+70 0	+70 0
630 800		0 -75					+80 0	+80 0
800 1000		0 -100					+90 0	+90 0
1000 1250		0 -125					+105 0	+105 0
1250 1600		0 -160
1600 2000		0 -200

Inner Ring

PN/(Normal)

Nominal Outer diameter		Deviation	Variation Vdp Series			Sealed bearing	Variation	Radial runout
>	<=	△Dmp	7．8．9	0．1	2．3．4	2 3 4	VDmp	Kea
6 18		0 -8	10	8	6	10	6	15
18 30		0 -9	12	9	7	12	7	15
30 50		0 -11	14	11	8	16	8	20
50 80		0 -13	16	13	10	20	10	25
80 120		0 -15	19	19	11	26	11	35
120 150		0 -18	23	23	14	30	14	40
150 180		0 -25	31	31	19	38	19	45
180 250		0 -30	38	38	23		23	50
250 315		0 -35	44	44	26		26	60
315 400		0 -40	50	50	30		30	70
400 500		0 -45	56	56	34		34	80
500 630		0 -50	63	63	38		38	100
630 800		0 -75	94	94	55		55	120
800 1000		0 -100	125	125	75		75	140
1000 1250		0 -125						160
1250 1600		0 -160						190
1600 2000		0 -200						220
2000 2500		0 -250						250

Model		Dimensions						Speed ratings[rpm]	Rated load				Maximum permissible load		Weight
Model		Dimensions						Speed ratings[rpm]	When working with bearings		When working with rollers		Maximum permissible load
Cylindrical outer diameter	Spherical outside diameter	D	d	B	R	r1,r2 min		min-1	Dynamic load	Static load	Dynamic load	Static load	Dynamic load	Static load
305700.2Z	305800.2Z	32	10	14	400	0.6	32	13000	7.8	4.5	7.4	4.1	9	12.9	0.062
305700.2RSR	305800.2RSR	32	10	14	400	0.6	32	8500	7.8	4.5	7.4	4.1	9	12.9	0.062
305701.2Z	305801.2Z	35	12	15.9	400	0.6	35	11000	10.6	5.9	10	5.2	8.3	12	0.078
305701.2RSR	305801.2RSR	35	12	15.9	400	0.6	35	7300	10.6	5.9	10	5.2	8.3	12	0.078
305702.2Z	305802.2Z	40	15	15.9	400	0.6	40	10000	11.9	7.1	11.1	6.4	12.2	17.6	0.1
305702.2RSR	305802.2RSR	40	15	15.9	400	0.6	40	6500	11.9	7.1	11.1	6.4	12.2	17.6	0.1
305703.2Z	305803.2Z	47	17	17.5	400	0.6	47	9000	14.6	9	13.8	8.3	19.3	27.5	0.16
305703.2RSR	305803.2RSR	47	17	17.5	400	0.6	47	6000	14.6	9	13.8	8.3	19.3	27.5	0.16
306702.2Z	306802.2Z	47	15	19	400	1.0	47	10000	17.7	10.3	14.6	9.2	12.5	18.4	0.15
306702.2RSR	306802.2RSR	47	15	19	400	1.0	47	6500	17.7	10.3	14.6	9.2	12.5	18.4	0.15
305704.2Z	305804.2Z	52	20	20.6	400	1	52	8000	19.5	12.5	18.2	11	17	18.4	0.15
305704.2RSR	305804.2RSR	52	20	20.6	400	1	52	5300	19.5	12.5	18.2	11	17	18.4	0.15
306703.2Z	306803.2Z	52	17	22.2	400	1.0	52	9500	21.1	12.5	17.2	11	15.5	22.2	0.2
306703.2RSR	306803.2RSR	52	17	22.2	400	1.0	52	6300	21.1	12.5	17.2	11	15.5	22.2	0.2
305705.2Z	305805.2Z	62	25	20.6	400	1	62	7000	21.2	14.6	19.9	13.4	30.5	44	0.32
305705.2RSR	305805.2RSR	62	25	20.6	400	1	62	4500	21.2	14.6	19.9	13.4	30.5	44	0.32
306704.2Z	306804.2Z	62	20	22.2	400	1.1	62	9000	24.5	15.8	21.1	14.5	27	29	0.34
306704.2RSR	306804.2RSR	62	20	22.2	400	1.1	62	6000	24.5	15.8	21.1	14.5	27	29	0.34
305706.2Z	305806.2Z	72	30	23.8	400	1	72	6000	29.6	21.2	27.6	18.6	34	49	0.49
305706.2RSR	305806.2RSR	72	30	23.8	400	1	72	4000	29.6	21.2	27.6	18.6	34	49	0.49
306705.2Z	306805.2Z	72	25	25.4	400	1.1	72	7900	32.5	21.6	27.5	19.5	34.5	39	0.5
306705.2RSR	306805.2RSR	72	25	25.4	400	1.1	72	5200	32.5	21.6	27.5	19.5	34.5	39	0.5
305707.2Z	305807.2Z	80	35	27	400	1.1	80	5300	39	28.5	35.1	24	31	44	0.65
305707.2RSR	305807.2RSR	80	35	27	400	1.1	80	3500	39	28.5	35.1	24	31	44	0.65
306706.2Z	306806.2Z	80	30	30.2	400	1.1	80	6200	45.5	31.5	36.5	26.5	43.5	53	0.67
306706.2RSR	306806.2RSR	80	30	30.2	400	1.1	80	4100	45.5	31.5	36.5	26.5	43.5	53	0.67
305708.2Z	305808.2Z	85	40	30.2	400	1.1	85	5000	50	37.5	34.5	22.5	208.8	36	0.75
305708.2RSR	305808.2RSR	85	40	30.2	400	1.1	85	5000	50	37.5	34.5	22.5	208.8	36	0.75
306707.2Z	306807.2Z	90	35	34.9	400	1.5	90	5100	56	39.5	44.5	33	39.5	66	0.95
306707.2RSR	306807.2RSR	90	35	34.9	400	1.5	90	2400	56	39.5	44.5	33	39.5	66	0.95
306708.2Z	306808.2Z	100	40	36.5	400	1.5	100	4700	69	49.5	56	42	70	84	1.2
306708.2RSR	306808.2RSR	100	40	36.5	400	1.5	100	4700	69	49.5	56	42	70	84	1.2

Ningbo DHK Precision Bearing Co., Ltd.

0+

Years Experience Working

0+

Customer Service

0+

Patented Technology

CERTIFICATE

DHK has passed IATF16949 quality system certification and ISO14001 environmental management system certification；and DHK is a national high-tech enterprise.

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

2024-05-07 Industry News

Using improper or damaged rolling mill bearings can have significant consequences in terms of safety and performance: Increased risk of machinery failure: The ramifications of be...

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

2024-05-01 Industry News

Environmental factors like temperature and humidity can significantly impact the performance of rolling mill bearings in several ways:Temperature Effects on Lubrication: Temperatur...

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

2024-04-22 Industry News

Alignment of screw compressor bearings is critical for optimizing performance and minimizing wear. Here are some specific alignment requirements:Parallel Alignment: Achieving preci...

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

2024-04-15 Industry News

Installing and mounting bearings correctly is crucial for ensuring the proper functionality and longevity of engineering machinery. Here are some best practices:Cleanliness: Thorou...

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

2024-04-08 Industry News

Both over-lubrication and under-lubrication of motor bearings can lead to detrimental effects on their performance and lifespan. Here are the potential risks associated with each:O...

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

2024-04-01 Industry News

Factors such as load capacity and rotational speed requirements are crucial considerations when selecting bearings for agricultural applications because they directly affect the pe...

Tel
+86-574-86597612
Email
ken@dhk-intl.com
Phone
+86-13957821917
Fax
+86-574-86597652

Add

Building 31, Chuang E Huigu, No.777, West Zhongguan RoadZhenhai Economic Development Zone, Ningbo, Zhejiang, China

Bore Dia.(mm)		C2(um)	CN(um)	C3(um)		C4(um)
＞	<=
-- 10		1 11	5 21	12 28		25 45
10 18		1 12	6 23	13 31		27 47
18 24		2 14	7 25	16 34		28 47
24 30		2 15	8 27	18 37		30 50
30 40		2 16	9 29	21 40		33 54
40 50		2 18	11 33	23 44		36 58
50 65		3 22	13 36	26 48		40 63
65 80		3 24	15 40	30 54		46 71
80 100		3 26	18 48	35 63		55 83
100 120		4 30	22 53	42 73		65 96
120 140		4 34	25 59		48 82	74 108
