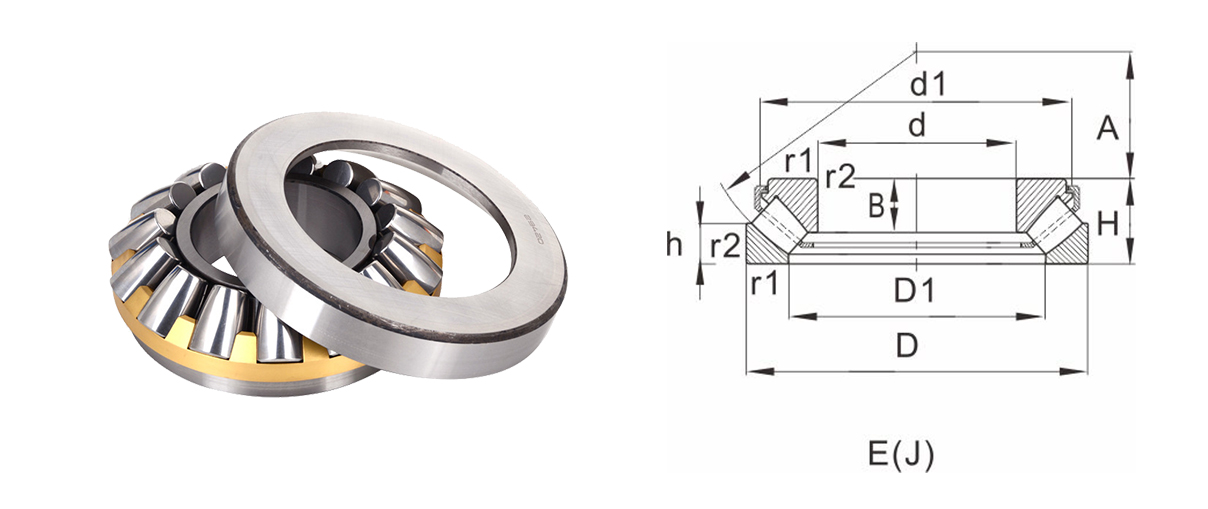

E(J)
E.MB

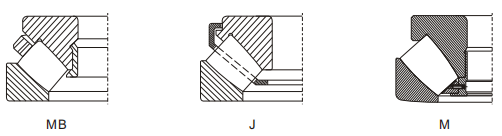

Design Variants and Cage
Misalignment
Tolerance
Tolerance For Bearing Height

DHK thrust self-aligning roller bearings are available in three different configurations based on different dimensions and cage designs.

Small and medium size self-aligning roller bearings can be solid copper cage (suffix MB) or stamped steel cage (suffix J);

The standard structure for large self-aligning roller bearings is a solid copper cage (suffix MB).

DHK can also provide thrust self-aligning roller bearings in an alternative solid copper cage (suffix M) of vehicle design if required.
Because of the structural characteristics, the thrust self-aligning roller bearing is self-aligning. It varies with bearing series and actual load. With the increase of actual load, the allowed aligning Angle decreases. Under normal working conditions and P (PO) <0.05Coa, the maximum allowable center Angle is shown in the following table:
DHK thrust self-aligning roller bearing adopts ordinary tolerance grade PN as the standard accuracy grade, and the specific tolerance is shown in the table below.

Tolerances for DHK ThrustBearings
Housing Washer

All dimensions shown in:(mm)
Tolerances in:(μm)

Nominal
Outer diameter >
≤ 30 30
50 50
80 80
120 120
180 180
250 250
315 315
400 400
500 500
630 630
800 800
1000 1000
1250 1250
1600

Tolerance class PN(normal)

Deviation △Dmp 0
-13 0
-16 0
-19 0
-22 0
-25 0
-30 0
-35 0
-40 0
-45 0
-50 0
-75 0
-100 0
-125 0
-160

Variation VDp 10 12 14 17 19 23 26 30 34 38 55 75

Tolerance class P6

Deviation △Dmp 0
-13 0
-16 0
-19 0
-22 0
-25 0
-30 0
-35 0
-40 0
-45 0
-50 0
-75 0
-100 0
-125 0
-160

Variation VDp 10 12 14 17 19 23 26 30 34 38 55 75

Tolerance class P5

Deviation △Dmp 0
-13 0
-16 0
-19 0
-22 0
-25 0
-30 0
-35 0
-40 0
-45 0
-50 0
-75 0
-100 0
-125 0
-160

Variation VDp 10 12 14 17 19 23 26 30 34 38 55 75

Tolerance class P4

Deviation △Dmp 0
-8 0
-9 0
-11 0
-13 0
-15 0
-20 0
-25 0
-28 0
-33 0
-38 0
-45 0
-70 0
-90 0
-125

Variation VDp 6 7 8 10 11 15 19 21 25 29 34

The thickness variationof housing washerSe is samethe thickness variation of shaft washer Si.

Model	Dimensions				Rated load		Extreme speed		Size						Weight
Model	d	D	B	r1,r2 min	Dynamic load	Static load	Grease lubrication	Oil lubrication	D1	d1	h	B	B1	A	E.MB	E(J)
29412E	60	130	42	1.5	335	900	3600	4800	88	115	20	27	15	38	2.6	2.21
29413E	65	140	45	2	380	1020	3400	4500	94	125	21	29.5	16	42	3.2	2.97
29414E	70	150	48	2	430	1200	3000	4000	102	135	23	31	17	44	3.9	3.63
29415E	75	160	51	2	490	1370	2800	3600	108	140	24	33.5	18	47	4.7	4.28
29416E	80	170	54	2.1	550	1560	2800	3400	116	150	26	35	19	50	5.6	5.17
29317E	85	150	39	1.5	345	1060	3400	3800	111	135	19	24.5	14	50	2.75	2.56
29417E	85	180	58	2.1	600	1730	2600	3200	123	160	28	37	21	54	6.75	6.29
29318E	90	155	39	1.5	355	1100	3400	3600	115	140	19	24.5	‐‐	52	2.85	2.71
29418E	90	190	60	2.1	670	1930	2400	3000	130	170	29	39	22	56	7.75	7.26
29320E	100	170	42	1.5	415	1370	3000	3200	129	155	20.8	26	15	58	3.65	3.39
29420E	100	210	67	3	830	2450	2200	2600	142	185	32	43	24	62	10.5	9.94
29322E	110	190	48	2	530	1700	2600	3000	142	175	23	30.3	17	64	5.3	5.07
29420E	110	230	73	3	950	2800	2000	2400	158	205	35	47	16	69	13.5	12.8
29324E	120	210	54	2.1	640	2080	2400	2000	158	190	26	34	19	70	7.35	6.76
29424E	120	250	78	4	1120	3350	1800	2200	172	220	37	50.5	28	74	17.5	16
29326E	130	225	58	2.1	720	2360	2200	2400	169	205	28	36.5	21	76	9	8.52
29426E	130	270	85	4	1250	3900	1700	2000	187	240	41	54	31	81	22	20.2
29328E	140	240	60	2.1	800	2700	2000	2200	181	220	29	38.5	22	82	10.5	9.81
2428E	140	280	85	4	1290	4050	1700	2000	194	250	41	54	31	86	23	24.9
29330E	150	250	60	2.1	815	2850	2000	2000	192	230	29	38	22	87	11	10.3
29430E	150	300	90	4	1460	4800	1500	1800	211	270	44	58	32	92	28	26.1
29331E	160	270	67	3	965	3350	2000	1900	206	245	32	42	24	92	14.5	12.6
29432E	160	320	95	5	1660	5300	1400	1700	224	285	45	60.5	34	99	33.5	36.2
29334E	170	280	67	3	1000	3450	1800	1900	215	255	32	42	24	96	15	14.3
29434E	170	340	103	5	1860	6000	1300	1600	239	305	50	65.5	37	104	44.5	37.9
29336E	180	300	73	3	1180	4150	1700	1700	230	275	35	46	26	103	19.5	18.4
29436E	180	360	109	5	2080	6800	1300	1400	253	320	52	69.5	39	110	52.5	44.9
20338E	190	320	78	4	1320	4650	1500	1600	243	295	38	49	28	110	23.5	22.4
29438E	190	380	115	5	2320	7500	1200	1400	268	340	55	73	41	117	60.5	50
29240E.MB	200	280	48	2	655	2650	2000	2000	236	265	24	‐‐	17	108	8.68
29340E	200	340	85	4	1530	5300	1400	1500	258	310	41	53.5	31	116	29.5	25.7
29440E	200	400	122	5	2550	8500	1100	1300	282	360	59	77	44	122	72	62.3
29244E.MB	220	300	48	2	720	3150	2000	1700	254	285	24		17	117	9.05
29344E	220	360	85	4	1560	5600	1400	1300	279	330	41	53	55	125	33.5	30.4
29444E	220	42	122	6	2600	8500	1100	1100	303	375	58	76.5	77	132	75	66
29428E	240	340	60	2.1	1040	4500	1700	1600	282	320	30		22	130	15.9
29352E	240	380	85	5	1700	6400	1400	1100	299	350	41	53	54	135	35.5	33
29452E	240	440	122	6	2700	9500	1100	1000	321	400	59	78	76	142	80	71.5
29252E.MB	260	360	60	2.1	1060	4750	1700	1500	302	340	30		22	139	16.9
29352E	260	420	95	5	2040	7650	1200	1000	327	385	45	61	61	148	49	46.6
29452E	260	480	132	6	3100	11000	1000	950	353	435	64	83	86	154	105	94.2
29260E.MB	280	380	60	3	1120	5100	1500	1300	322	360	30		22	150	18
29360E	280	440	95	5	2120	8300	1200	950	346	405	46	61	61	158	53	51.2
29460E	280	520	145	6	3650	12900	900	850	380	470	68	92	86	166	135	119
29264E.MB	300	420	73	3	1430	6550	1400	1300	353	395	38		22	162	28.2
29364E	300	480	109	5	2550	9650	1100	900	378	440	50	69	62	168	75	68.6
29464E	300	540	145	7.5	3900	14000	900	800	398	490	70	93	95	175	140	130
29264E.MB	320	440	73	3	1500	6950	1300	1200	372	415	38		26	172	30
29364E	320	500	109	5	2650	10600	1100	850	396	465	53	68	70	180	78	78.5
29464E	320	580	155	7.5	4300	15600	800	750	432	525	75	97	95	191	175	159
29268E.MB	340	460	73	3	1560	7350	1300	1100	391	435	37		26	183	31.7
29368E.MB	340	540	122	5	3250	12900	950	850	426	500	59		68	192	96.3
29468E	340	620	170	7.5	5200	19000	750	670	458	560	82	106	102	201	220	197
29272E.MB	360	500	85	4	1900	8800	1200	1100	423	475	44		26	194	46.2
29372E.MB	360	560	122	5	3350	13400	950	850	446	520	59		44	202	101
29472E.MB	360	640	170	7.5	5400	20400	750	700	475	580	82		61	210	216
29276E.MB	380	520	85	4	2080	9650	1100	1000	440	490	42		31	202	48.5
29376E.MB	380	600	132	6	3900	16000	850	750	474	555	63		48	216	129
29476E.MB	380	670	175	7.5	5850	22400	700	670	500	610	85		63	230	243
29280E.MB	400	540	85	4	2120	10200	1100	950	460	510	42		31	212	50.7
29380E.MB	400	620	132	6	4000	16600	850	750	493	575	64		48	225	134
29480E.MB	400	710	185	7.5	6400	25000	670	630	530	645	89		67	236	288
29248E.MB	420	580	95	5	2650	12500	1000	850	489	550	46		34	225	69.8
29384E.MB		650	140	6	4300	18000	800	700	520	600	68		50	235	154
29484E.MB	420	730	185	7.5	6700	26000	630	600	550	665	89		67	244	299
29288E.MB	440	600	95	5	2650	13400	1000	850	506	570	49		34	235	72.8
229388E.MB	440	680	145	6	4550	19000	750	670	548	630	70		52	245	172
29488E.MB	440	780	206	9.5	7650	30000	600	560	585	710	100		74	260	386
29292E.MB	460	620	95	5	2700	13400	950	800	528	590	46		34	245	199
29392E.MB	460	710	150	6	5000	21200	700	630	567	660	72		54	257	74.6
29492E.MB	460	800	206	9.5	7800	31000	600	560	605	730	100		74	272	399
29296E.MB	480	650	103	5	2800	14600	900	800	556	620	55		37	259	89.5
29396E.MB	480	730	150	6	5200	22400	700	600	587	675	72		54	270	204
29496E.MB	480	850	224	9.5	9300	36500	530	530	630	770	108		81	280	507
292/500E.MB	500	670	103	5	2900	15300	900	750	574	640	55		37	268	93.3
293/500E.MB	500	750	150	6	5100	22800	700	600	610	700	74		54	280	211
294/500E.MB	500	870	224	9.5	9300	37500	530	500	654	790	107		81	290	514
292/530E.MB	530	710	109	5	3100	16300	850	750	612	675	57		39	288	108
293/530E.MB	530	800	160	7.5	6000	26500	630	560	646	745	76		58	295	260
294/530E.MB	530	920	236	9.5	10200	41500	500	480	690	840	114		85	309	609
292/560E.MB	560	750	115	5	3650	19300	800	670	642	715	60		41	302	131
294/560E.MB	560	980	250	12	11800	49000	480	430	729	890	120		90	328	739
292/600E.MB	600	800	122	5	3800	20400	750	630	688	760	65		44	321	152
294/600E.MB	600	1030	258	12	12200	52000	450	430	782	940	127		93	347	820
292/630E.MB	630	850	132	6	4800	25500	670	560	724	805	67		48	338	195
294/630E.MB	630	1090	280	12	14000	58500	430	400	820	995	136		101	365	1010
292/670E.MB	670	900	140	6	4900	26000	630	600	773	855	74		50	364	224
294/710E.MB	710	1220	308	15	17300	75000	400	340	916	1115	150		111	415	1390
292/750E.MB	750	1000	150	6	5600	32000	600	530	861	955	81		54	406	294
293/750E.MB	750	1120	224	9.5	10800	51000	450	380	909	1045	108		81	415	696
292/800E.MB	800	1060	155	7.5	6550	37500	530	450	913	1010	81		56	426	340
293/800E.MB	800	1180	230	9.5	11800	57000	450	360	961	1100	112		83	440	785
293/850E.MB	850	1250	243	12	12900	64000	430	340	1021	1165	118		87	468	920
