Series NCF-Single Row Full Complement Cylindrical Roller Bearings

NJ23...VH
NC
NCF

Design Variants
Misalignment
Tolerance
Internal clearance

Full complement cylindrical roller bearings are non-separable bearings, exception series NJ23 VH.

This kind of bearings features a much higher internal friction due to them without cage. So the speed ratings are limited.

Full complement cylindrical roller bearings are mainly produced in single row and double row designs.

Un-sealed single row and double row bearings are frequently used in gearbox, sealed double row bearings are frequently used in hoisting mechanism.

Additional to the standard products range of single row and double row full complement cylindrical roller bearings, DHK can produce other full complement bearings according to individual customer specifications or special bearings upon request.

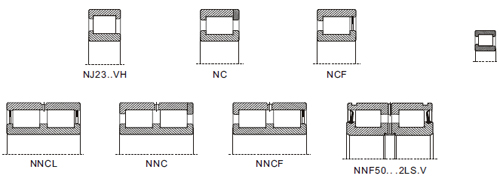

The most important basic types are shown on the below.

Single row bearings

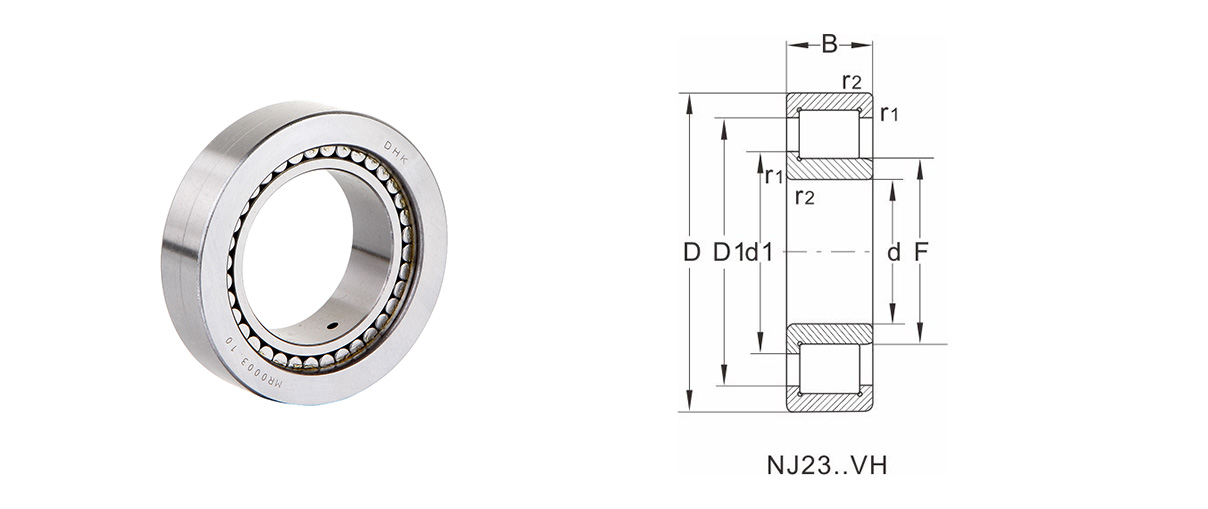

Series NJ23...VH these bearings feature two integral flanges on their outer ring and one integral flange on their inner ring, thus there are able to accommodate minor thrust force in one direction only. Bearings of this series are self-retaining roller assemblies, which enable the removal of inner rings without loss of roller retention in the outer rings.

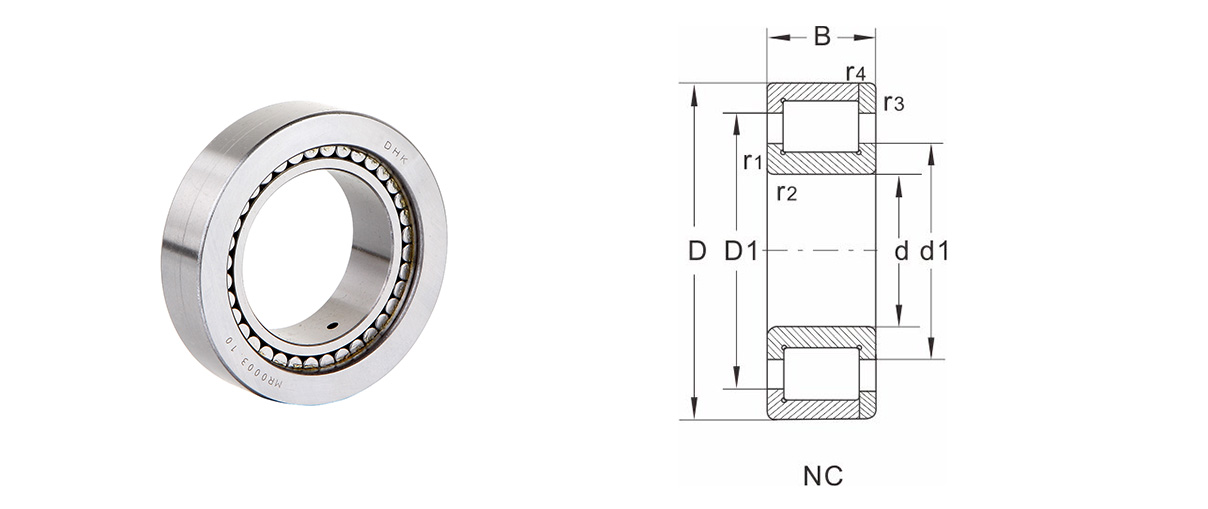

Series NC...: These bearings feature two integral flanges in their inner ring and an outer ring with one integral flange one side and one loose rib on its opposite side. Thus they are able to be used as locating bearings and accommodate minor axial force in both directions.

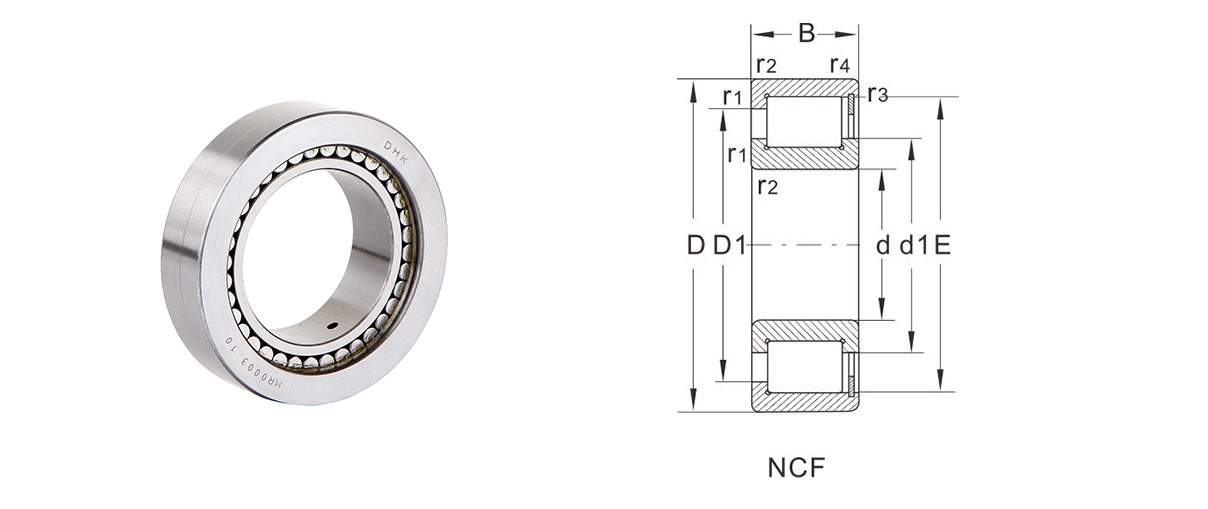

Series NCF...These bearings feature two integral flanges on the inner ring and an outer ring with one integral flange on one side and a retaining ring which sitting in circumferential groove at the opposite side. Thus these bearings are able to accommodate minor axial force in one direction only.

Double row bearings

Series NNCL...: This type double row cylindrical roller bearings have an inner ring with three integral flanges and a plain outer ring. The outer ring has two retaining rings which sitting in circumferential groove on both sides of the raceway diameter to retain the outer ring and bearing assembly. Thus these bearings could not accommodate any axial force.

Series NNC... This type bearing has three integral flanges on their inner ring and an outer ring with one integral flanges on one side and a loose rib on the opposite side. Thus these bearings are able accommodate minor axial forced in both directions and can be used as locating bearing.

Series NNCF... This type bearing feature three integral flanges on the inner ring and an outer ring with one integral flanges at one side and a retaining ring which sitting in circumferential groove at the opposite side.

Thus these bearing are able to accommodate minor axial force in on direction only.

Series NNF50...2LS.V: Bearings of this series feature an outer ring with a center integral flange and two half inner ring with two integral flanges on each half .Two half inner rings are connected by a connecting ring which also retains the outer ring and bearing assembly. These bearings also feature lubrication grooves and hole both on outer ring and inner ring and two snap grooves on outer diameter.

These bearings are supplied with two contacting seals (suffix .2LS) and pre-greased. However, if need supplied with snap rings (suffix.2NR), please make clear before release the order.

These series bearings have an outer ring with l mm less than the width of inner ring, several same bearings simply mounted on one shaft and there are a space between outer rings face, and this enable the different outer rings have different speed, this feature make it performance well when it used as pulley bearings.
Single row full complement cylindrical roller bearings a misalignment between inner ring and outer ring must not exceed 4 angular minutes maximum.

Double row full complement cylindrical roller bearings are not able to compensate any misalignment.

DHK full complement cylindrical roller bearings are produced to normal tolerance class (PN) as standard.DHK can provide these bearings with other tolerance class upon request.

Detailed tolerance values are listed in chapter of Tolerance of radial bearings, page 8.

Tolerances for DHK full complement cylindrical roller bearings (excluding tapered roller bearings)

All dimensions shown in (mm):

Tolerances in (um):

Inner Ring

PN/(Normal)

Nominal Bore diameter		Deviation dmp	Variation Vdp Series			Variation Vdmp	Taper bore 1:12 Deviation/ Variation
>	<=	△dmp	7．8．9	0．1	2．3．4	Vdmp	△dmp	△d1mp-dmp	Vdp
2.5 10		0 -8	10	8	6	6	+15 0	+15 0	10
10 18		0 -8	10	8	6	6	+18 0	+18 0	10
18 30		0 -10	13	10	8	8	+21 0	+21 0	13
30 50		0 -12	15	12	9	9	+25 0	+25 0	15
50 80		0 -15	19	19	11	11	+30 0	+30 0	19
80 120		0 -20	25	25	15	15	+35 0	+35 0	25
120 180		0 -25	31	31	19	19	+40 0	+40 0	31
180 250		0 -30	38	38	23	23	+46 0	+46 0	38
250 315		0 -35	44	44	26	26	+52 0	+52 0	44
315 400		0 -40	50	50	30	30	+57 0	+57 0	50
400 500		0 -45	56	56	34	34	+63 0	+63 0	56
500 630		0 -50	63	63	38	38	+70 0	+70 0
630 800		0 -75					+80 0	+80 0
800 1000		0 -100					+90 0	+90 0
1000 1250		0 -125					+105 0	+105 0
1250 1600		0 -160
1600 2000		0 -200

Outer ring

PN/(Normal)

Nominal Outer diameter		Deviation	Variation Vdp Series			Sealed bearing	Variation	Radial runout
>	<=	△Dmp	7．8．9	0．1	2．3．4	2 3 4	VDmp	Kea
6 18		0 -8	10	8	6	10	6	15
18 30		0 -9	12	9	7	12	7	15
30 50		0 -11	14	11	8	16	8	20
50 80		0 -13	16	13	10	20	10	25
80 120		0 -15	19	19	11	26	11	35
120 150		0 -18	23	23	14	30	14	40
150 180		0 -25	31	31	19	38	19	45
180 250		0 -30	38	38	23		23	50
250 315		0 -35	44	44	26		26	60
315 400		0 -40	50	50	30		30	70
400 500		0 -45	56	56	34		34	80
500 630		0 -50	63	63	38		38	100
630 800		0 -75	94	94	55		55	120
800 1000		0 -100	125	125	75		75	140
1000 1250		0 -125						160
1250 1600		0 -160						190
1600 2000		0 -200						220
2000 2500		0 -250						250

DHK full complement cylindrical roller bearings are produced to the normal internal radial clearance group (CN) as standard.Upon request, DHK can provide these bearings with other clearance group.

Detailed values of radial clearance groups are listed in the tables on page 128.

Internal Clearance Groups Of DHK Cylindrical Roller Bearings With Cylindrical Bore

Bore Dia.(mm)
>	<=	C1（um）	C2（um）	CN（um）	C3（um）	C4（um）	C5（um）
-- 24		5 15	0 25	20 45	35 60	50 75	75 100
24 30		5 15	0 25	20 45	35 60	50 75	75 100
30 40		5 15	5 30	25 50	45 70	60 85	85 110
40 50		5 18	5 35	30 60	50 80	70 100	100 130
50 65		5 20	10 40	40 70	60 90	80 100	110 140
65 80		10 25	10 45	40 75	65 100	90 125	125 160
80 100		10 30	15 50	50 85	75 110	105 140	140 175
100 120		10 30	15 55	50 90	85 125	125 165	165 205
120 140		10 35	15 60	60 105	100 145	145 190	190 235
140 160		10 35	20 70	70 120	115 165	165 215	215 265
160 180		10 40	25 75	75 125	120 170	170 220	220 270
180 200		15 45	35 90	90 145	140 195	195 250	250 305
200 225		15 50	45 105	105 165	160 220	220 280	280 340
225 250		15 50	45 110	110 175	170 235	235 300	300 365
250 280		20 55	55 125	125 195	190 260	260 330	330 400
280 315		20 60	55 130	130 205	200 275	275 350	350 425
315 355		20 65	65 145	145 225	225 305	305 385	385 465
355 400		25 75	100 190	190 280	280 270	570 460	460 550
400 450		25 85	110 210	210 310	310 410	410 510	510 610
450 500		25 95	110 220	220 330	330 440	440 550	550 660
500 560		25 100	120 240	240 360	360 480	480 600	600 720
560 630		30 110	140 260	260 380	380 500	500 620	620 740
630 710		30 130	145 285	285 425	425 565	565 705	705 845
710 800		35 140	150 310	610 470	470 630	630 790	790 950
800 900		35 160	180 350	350 520	520 690	690 860	860 1030
900 1000		35 170	200 390	390 580	580 770	770 960	960 1150
1000 1120		50 200	220 430	430 640	640 850	850 1060	1060 1270
1120 1250		50 200	230 470	470 710	710 950	950 1190	1060 1270
1250 1400		50 200	270 530	530 790	790 1050	1050 1310	1060 1270
1400 1600		50 200	330 610	610 890	890 1170	1170 1450	1060 1270
1600 1800		50 200	380 700	700 1020	1020 1340	1340 1660	1060 1270
1800 2000		50 200	400 760	760 1120	1120 1480	1480 1840	1060 1270

Internal clearance groups of DHK cylindrical roller bearings with tapered bore

Bore Dia.(mm)
>	<=	C1（um）	C2（um）	CN（um）	C3（um）	C4（um）	C5（um）
-- 24		10 20	15 40	30 55	40 65	50 75	75 100
24 30		15 25	20 45	35 60	45 70	55 80	80 105
30 40		15 25	20 45	40 65	55 80	70 95	95 120
40 50		17 30	25 55	45 75	60 90	75 105	105 135
50 65		20 35	30 60	50 80	70 100	90 120	120 150
65 80		25 40	35 70	60 95	85 120	110 145	145 180
80 100		35 55	40 75	70 105	95 130	120 155	155 190
100 120		40 60	50 90	90 130	115 155	140 180	180 220
120 140		45 70	55 100	100 145	130 175	160 205	205 250
140 160		50 75	60 110	110 160	145 195	180 230	230 280
160 180		55 85	75 125	126 175	160 210	195 245	245 295
180 200		60 90	85 140	140 195	180 235	220 275	275 330
200 225		60 95	95 155	155 215	200 260	245 305	305 365
225 250		65 100	105 170	170 235	220 285	270 335	335 400
250 280		75 110	115 185	185 255	240 310	295 365	365 435
280 315		80 120	130 205	205 280	265 340	325 400	400 475
315 355		90 135	145 250	225 304	290 370	355 435	435 515
355 400		100 150	165 255	225 345	330 420	405 495	495 585
400 450		110 170	185 285	285 385	370 470	455 555	555 655
450 500		120 190	205 315	315 425	410 520	505 615	615 725
500 560		130 210	230 350	350 470	455 575	560 680	680 800
560 630		140 230	260 380	380 500	500 620	620 740	740 860
630 710		160 260	295 435	435 575	565 705	685 835	935 975
710 800		170 290	325 485	485 645	630 790	775 935	935 1095
800 900		190 330	370 540	540 710	700 870	860 1030	1030 1200
900 1000		210 360	410 600	600 790	780 970	960 1150	1150 1340
1000 1120		230 400	455 665	665 875	865 1075	1065 1275	1275 1485
1120 1250		230 400	490 730	730 970	960 1200	1200 1440	1275 1485
1250 1400		230 400	550 810	810 1070	1070 1330	1330 1590	1275 1485
1400 1600		230 400	640 920	920 1200	1200 1480	1480 1760	1275 1485
1600 1800		230 400	700 1020	1020 1340	1340 1660	1660 1980	1275 1485
1800 2000		230 400	760 1120	1120 1480	1480 1840	1840 2200	1275 1485

Model	Dimensions					Rated load		Bearing dimensions					Extreme speed		Weight
Model	d	D	B	r1,r2 Min	r3,r4 min	Dynamic load Cr	Static load Cor	E	F	d1	D1	s	Grease lubrication	Oil lubrication	Weight
NCF2904V	20	37	11	0.3	0.3	16	18.5	32.3	--	26.3	30.3	0.5	4800	9000	0.06
NCF3004V	20	42	16	0.6	0.3	33	39.7	37.5	--	27.5	34.5	0.5	4500	8400	0.11
NCF2905V	25	42	11	0.3	0.3	18	22.5	37.45	--	31.4	35.4	0.5	4000	7500	0.06
NCF3005V	25	47	16	0.6	0.3	37.4	46.9	42.7	--	36.3	39	0.5	3600	7000	0.12
NCF2205V	25	52	18	1	0.6	46	45	46.5	--	35	42	1	--	--	0.18
NCF2906V	30	47	11	0.3	0.3	19.8	26	42.5	--	36.5	40.5	0.5	3600	6700	0.07
NCF3006V	30	55	19	1	0.4	49	63	49.6	--	38.4	46.8	0.8	3200	5600	0.2
NCF2206V	30	62	20	1	0.6	63	65	55	38.34	42	50.5	1	--	--	0.3
NCF2907V	35	55	13	0.6	0.3	31	40.5	49.9	--	42.4	47.4	0.5	3000	5600	0.12
NCF3007V	35	62	20	1	0.4	55	71.5	55.52	--	43.6	52.6	1	2800	5300	0.25
NCF2207V	35	72	23	1.1	0.6	79	79	64	--	47	59	1	--	--	0.44
NCF2908V	40	62	14	0.6	0.3	34	46.5	56.6	--	48.3	53.9	0.5	2600	5000	0.15
NCF3008V	40	68	21	1	0.4	65	86	61.8	--	49	58.6	1	2400	4500	0.3
NCF2208V	40	80	23	1.1	1.1	87	83	71	--	54	66	1	--	--	0.55
NCF2909V	45	68	14	0.6	0.3	37	52	61.9	--	53.6	59.2	0.5	2200	4500	0.18
NCF3009V	45	75	23	1	0.4	81	110	68.5	--	55	65	1	2000	4300	0.4
NCF2209V	45	85	23	1.1	1.1	90	99	74.5	--	57.5	69.5	1	--	--	0.59
NCF2909V	50	72	14	0.6	0.3	39	56	67.1	--	58.7	64.4	0.5	1900	4000	0.18
NCF3010V	50	80	23	1	0.4	85	120	72.33	--	58	68.8	1	1900	4000	0.43
NCF2210V	50	90	23	1.1	1.1	97	113	81.5	--	64.5	76.5	1	--	--	0.64
NCF2911V	55	80	16	1	0.6	42	60	73.2	--	64.2	70.2	0.5	1800	3800	0.27
NCF3011V	55	90	26	1.1	0.6	105	152	83.7	--	67.5	79.5	1.2	1600	3400	0.63
NCF2211V	55	100	25	1.5	1.1	125	150	89	--	70	83.5	1.5	--	--	0.87
NCF2912V	60	85	16	1	0.6	52	78	79.3	--	69.5	76.1	0.5	1600	3400	0.28
NCF3012V	60	95	26	1.1	0.6	110	160	86.9	--	70.9	82.9	1.2	1600	3200	0.68
NCF2212V	60	110	28	1.5	1.5	152	180	99	--	77	93	1.5	--	--	1.18
NCF2913V	65	90	16	1	0.6	53.5	80	83.5	--	73.7	80.3	0.5	1600	3400	0.3
NCF3013V	65	100	26	1.1	0.6	117	175	93.1	--	77.1	87.1	1.2	1400	3000	0.72
NCF2213V	65	120	31	1.5	1.5	178	214	106	--	82.5	100	1.5	--	--	1.57
NCF2914V	70	100	19	1	0.6	77	118	92.5	--	80.5	88.5	0.75	1400	3000	0.48
NCF3014V	70	110	30	1.1	0.6	145	215	102.1	--	82.6	97.2	1.5	1300	2800	1.05
NCF2214V	70	120	31	1.5	1.5	184	227	111	--	87	105	1.5	--	--	1.66
NCF2915V	75	105	19	1	0.6	79.5	124	97.6	--	85.6	93.6	0.75	1300	2800	0.5
NCF3015V	75	115	30	1.1	0.6	154	224	106.5	--	87	102	1.5	1200	2600	1.1
NCF2215V	75	130	31	1.5	1.5	190	241	116	--	91.5	110	1.5	--	--	1.7
NCF2916V	80	110	19	1	0.6	81	128	102.7	--	90.4	98.7	0.75	1200	2600	0.53
NCF3016V	80	125	34	1.1	0.6	194	285	117.2	--	94.8	112	1.8	1100	2400	1.5
NCF2216V	80	140	33	2	2	226	285	126	--	98.5	119	1.5	--	--	2.15
NCF2917V	85	120	22	1.1	1	105	168	112.5	--	99.1	109	0.75	1100	2400	0.78
NCF3017V	85	130	34	1.1	0.6	195	295	121.6	--	99.2	116	1.8	1100	2200	1.55
NCF2217V	85	150	36	2	2	255	325	133	--	104.5	126	1.5	--	--	2.74
NCF2918V	90	125	22	1.1	1	105	172	115.6	--	102	111	0.75	1100	2400	0.82
NCF3018V	90	140	37	1.5	1	227	348	130.3	--	106.2	125	2	1000	2200	2.05
NCF2218V	90	160	40	2	2	290	370	140.5	--	110	133	2.5	--	--	3.48
NCF2919V	95	130	22	1.1	1	108	180	120.4	--	107	117	0.75	1000	2200	0.86
NCF3019V	95	145	37	1.5	1	230	360	135.1	--	111	129	4.5	950	2000	2.15
NCF2219V	95	170	43	2.1	2.1	340	435	155.5	--	122	147	2.5	--	--	4.17
NCF2920V	100	140	24	1.1	1	132	220	129	--	114	124	0.75	1000	2200	1.15
NCF3020V	100	150	37	1.5	1	242	375	139.9	--	116	134	2	950	2000	2.2
NCF2220V	100	180	46	2.1	2.1	395	520	163	--	127.5	154	2.5	--	--	5.13
NCF2922V	110	150	24	1.1	1	140	243	141.3	--	126	137	0.75	900	1900	1.25
NCF3022V	110	170	45	2	1	325	510	157	--	129	150	3	850	1800	3.65
NCF2222V	110	200	53	2.1	2.1	455	590	177	--	137	167	4	--	--	7.24
NCF2924V	120	165	27	1.1	1	172	287	154.3	--	136	149	0.75	850	1800	1.7
NCF3024V	120	180	46	2	1	340	550	167.9	--	139	160.5	3.5	800	1700	3.95
NCF2224V	120	215	58	2.1	2.1	540	730	192.5	--	150.5	182	4	--	--	9.08
NCF2926V	130	180	30	1.5	1.1	205	350	167.1	--	147	161	0.75	750	1600	2.3
NCF3026V	130	200	52	2	1	415	620	186.5	--	148.6	175	3.5	700	1500	5.8
NCF2226V	130	230	64	3	3	630	860	207	--	162.5	196	5	--	--	11.25
NCF2928V	140	190	30	1.5	1.1	220	375	180	--	159	173	0.75	700	1500	2.4
NCF3028V	140	210	53	2	1	440	680	198.2	--	162.7	189.1	3.5	670	1400	6.1
NCF2228V	140	250	68	3	3	720	1020	222	--	174	210	5	--	--	14.47
NCF1830V	150	190	20	1.1	1	108	185	159.5	--	163	175	1.5	700	1500	1.3
NCF2930V	150	210	36	2	1.1	286	497	195.5	--	171	188	0.8	670	1400	3.85
NCF3030V	150	225	56	2.1	1.1	530	880	211.7	--	174	203	3.5	630	1300	7.5
NCF2230V	150	270	73	3	3	531	1180	237	--	185.5	254	6	--	--	18.43
NCF1832V	160	200	20	1.1	1.1	112	199	169	--	173	185	1.5	670	1400	1.45
NCF2932V	160	220	36	2	1.1	297	524	205.4	--	181	198	0.8	630	1300	4.05
NCF3023V	160	240	60	2.1	1.1	580	970	225.1	--	184.8	214.8	4	600	1100	9.1
NCF2232V	160	290	80	3	3	1030	1490	266.5	--	208.5	252	6	--	--	23
NCF1834V	170	215	22	1.1	1.1	142	245	204.5	--	185	200	1.5	630	1300	1.85
NCF2934V	170	230	36	2	1.1	308	552	216	--	192	208	0.8	600	1200	4.25
NCF3034V	170	260	67	2.1	1.1	728	1230	243.2	--	198	232	4	560	1000	12.5
NCF2234V	170	310	86	3	3	1150	1680	281	--	220.5	266	7	--	--	28.65
NCF1836V	180	225	22	1.1	1.1	147	275	215.2	--	196	211	1.5	600	1200	1.95
NCF2936V	180	250	42	2	1.1	391	690	232	--	203	223	1	560	1100	6.25
NCF3036V	180	280	74	2.1	2.1	820	1400	260.5	--	212	249	5	560	1100	16.5
NCF2236V	180	320	86	4	4	1190	1780	293	--	232.5	278	7	--	--	29.8
NCF1838V	190	240	24	1.5	1.5	172	320	229	--	208	224	1.8	560	1100	2.45
NCF2938V	190	260	42	2	1.1	440	782	244	--	212	236	1	560	1100	6.55
NCF3038V	190	290	75	2.1	2.1	800	1290	270	--	222	258	6	530	1000	17
NCF2238V	190	340	92	4	4	1310	1920	310.5	--	243.5	294	9	--	--	35.65
NCF1840V	200	250	24	1.5	1.5	176	335	237.5	--	216	233	1.8	560	1100	2.6
NCF2940V	200	280	48	2.1	1.5	528	938	262	--	227	253	3	530	1000	9.15
NCF3040V	200	310	82	2.1	2.1	990	1750	287.75	--	237	276	6.5	450	800	22.5
NCF2240V	200	360	98	4	4	1420	2040	318.5		246.5	300.5	9	--	--	43.12
NCF1844V	220	270	24	1.5	1.5	183	350	258	--	237	253	1.8	530	1000	2.85
NCF2944V	220	300	48	2.1	1.5	550	1030	283	--	248	274	2.5	480	900	9.9
NCF3044V	220	340	90	3	3	1190	2100	321.7	--	254.7	297.5	7	430	850	29.5
NCF1848V	240	300	28	2	2	260	510	287	--	261	281	1.8	480	900	4.4
NCF2948V	240	320	48	2.1	1.5	583	1120	303	--	261	296	2.5	450	850	11
NCF3048V	240	360	92	3	3	1250	2240	335.6	--	278	322	7	430	800	32
NCF1852V	260	320	28	2	2	270	550	307.2	--	281	301	1.8	430	800	4.75
NCF2952V	260	360	60	2.1	1.5	737	1410	333.7	--	294	321	5	400	750	18.5
NCF3052V	260	400	104	4	4	1600	2920	373.5	--	304.1	358.1	8	380	700	46.5
NCF1856V	280	350	33	2	2	330	650	334	--	305	327	2.5	400	750	7.1
NCF2956V	280	380	60	2.1	1.5	897	1710	362.7	--	319	346	4	380	700	20
NCF3056V	280	420	106	4	4	1650	3100	391	--	324	375	9	320	560	50
NCF1860V	300	380	38	2.1	2.1	418	850	363	--	329	355	3	360	670	10
NCF2960V	300	420	72	3	3	1120	2170	390.5	--	342	375	5	340	630	31.5
NCF3060V	300	460	118	4	4	1600	3250	433	--	355	413	14	--	--	69
NCF1864V	320	400	38	2.1	2.1	440	852	383	--	349	375	3	340	630	10.5
NCF2964V	320	440	72	3	3	1140	2300	411	--	363	395	5	320	600	33
NCF3064V	320	480	121	4	4	1980	3450	449	--	368	434	14	--	--	74.5
NCF1868V	340	420	38	2.1	2.1	446	900	403	--	369	395	3	320	600	11
NCF2968V	340	460	72	3	3	1190	2430	431	--	383	415	5	300	560	35
NCF3068V	340	520	133	5	5	2380	4150	485	--	395	468	14	--	--	100
NCF1872V	360	440	38	2.1	2.1	452	950	423.2	--	389	415	3	300	560	12
NCF2972V	360	480	72	3	3	1230	2580	451.5	--	403	436	5	280	530	36.5
NCF3072V	360	540	134	5	5	2420	4300	485	--	412	468	14	--	--	105
NCF1876V	380	480	46	2.1	2.1	627	1230	458	--	416	448	305	280	530	19.5
NCF2976V	380	520	82	4	4	1570	3000	488	--	427	473	5	260	500	52.5
NCF3076V	380	560	135	5	5	2510	4550	521	--	431	504	14	--	--	110
NCF1880V	400	500	46	2.1	2.1	627	1280	475	--	433	465	3.5	260	500	20.5
NCF2980V	400	540	82	4	4	1650	3420	511	--	450	496	5	240	480	54.5
NCF1884V	420	520	46	2.1	2.1	660	1340	499	--	457	489	3.5	240	480	21
NCF2984V	420	560	82	4	4	1650	3500	524	--	463	509	5	220	450	57
NCF3084V	420	620	150	5	5	3030	5700	577	--	480	559	15	--	--	150
NCF1888V	440	540	46	2.1	2.1	670	1405	516	--	474	506	3.5	220	450	22
NCF2888V	440	540	450	5	5	968	2360	516	--	474	508	15	--	--	29
NCF2988V	440	600	95	4	4	2010	4270	565.5	--	502	545	6	200	430	80.5
NCF3088V	440	650	157	6	6	3580	6550	611	--	500	590	16	--	--	175
NCF1892V	460	580	56	2.1	2.1	913	1850	553	--	501	541	5	200	430	34
NCF2892V	460	580	72	3	3	1300	3050	553	--	501	543	5	--	--	44
NCF2992V	460	620	95	3	3	2050	4420	579	--	516	558	6	190	400	83.5
NCF3092V	460	680	163	6	6	3690	6950	635	--	522	611	16	--	--	195
NCF2986V	480	600	72	3	3	1320	3150	573.5	--	520	562	5	--	--	45
NCF2996V	480	650	100	4	4	2290	4950	606	--	538	584	--	180	380	98
NCF3096V	480	700	165	6	6	3740	7200	654	--	846	628	16	--	--	205
NCF28/500V	500	620	72	3	3	1340	3350	594	--	841	582	2.4	--	--	48
NCF29/500V	500	670	100	5	5	2380	5240	634.5	--	567	612	7	170	360	100
NCF30/500V	500	720	167	6	6	3800	7500	676	--	565	650	16	--	--	215
NCF28/530V	530	650	72	3	3	1400	3450	524.5	--	572	614	5	--	--	49.5
NCF29/530V	530	710	106	5	5	2640	6100	676	--	598	661	7	--	--	120
NCF30/530V	530	780	185	6	6	5230	10600	732.3	--	610	702	16	--	--	300
NCF28/560V	560	680	72	3	3	1420	3650	655	--	606	637	4.3	--	--	54
NCF29/560V	560	750	112	5	5	3080	6700	718	--	628	700	7	--	--	140
NCF30/560V	560	820	195	6	6	5830	11800	770	--	642	738	16	--	--	345
NCF18/630V	630	780	69	4	4	1250	2800	739	--	681	725	8	140	300	72.5
NCF28/630V	630	780	88	4	4	1870	5000	739	--	680	728	8	--	--	92.5
NCF29/630V	630	850	128	6	6	3740	8650	807	--	709	788	8	--	--	205
NCF28/670V	670	820	88	4	4	1940	5300	783	--	724	772	8	--	--	97.5
NCF29/670V	670	900	136	6	6	3910	9000	846	--	748	827	10	--	--	245
NCF18/710V	710	870	74	4	4	1540	3550	831	--	767	815	8	120	260	92.5
NCF28/710V	710	870	95	4	4	2330	6300	831	--	766	818	8	--	--	115
NCF29/710V	710	950	140	6	6	4290	10000	896	--	790	876	10	--	--	275
NCF18/750V	750	920	78	5	5	1760	4030	880	--	811	863	8	110	240	110
NCF28/750V	750	920	100	5	5	2640	6950	878	--	805	863	8	--	--	140
NCF29/750V	750	1000	145	6	6	4460	10600	938	--	832	918	11	--	--	315
NCF18/800V	800	980	82	5	5	1940	4800	936	--	863	922	9	--	--	130
NCF28/800V	800	980	106	5	5	2750	7500	936	--	863	922	10	--	--	165
NCF29/800V	800	1060	150	6	6	4950	12200	1002	--	891	981	11	--	--	360
NCF18/850V	850	1030	82	5	5	2010	5100	985	--	911	972	9	--	--	135
NCF28/850V	850	1030	106	5	5	2860	8000	986	--	911	972	10	--	--	175
NCF29/850V	850	1120	155	6	6	5230	12700	1061	--	943	1039	13	--	--	405
NCF18/900V	900	1090	85	5	5	2380	6000	1044	--	966	1029	9	--	--	160
NCF28/900V	900	1090	112	5	5	3190	9150	1044	--	966	1029	10	--	--	208
NCF29/900V	900	1180	165	6	6	5940	14500	1120	--	996	1096	13	--	--	472
NCF18/950V	950	1150	90	5	5	2420	6300	1103	--	1021	1087	10	--	--	185
NCF28/950V	950	1150	118	5	5	3410	9800	1103	--	1021	1087	12	--	--	240
NCF29/950V	950	1250	175	7.5	7.5	6600	16300	1179	--	1048	1154	14	--	--	565
NCF18/1000V	1000	1220	100	6	6	2920	7500	1165	--	1073	1148	12	--	--	230
NCF28/1000V	1000	1220	128	6	6	4130	11600	1165	--	1073	1148	12	--	--	310
NCF29/1000V	1000	1320	185	7.5	7.5	7480	18600	1252	--	1113	1226	14	--	--	680
NCF18/1120V	1120	1360	106	6	6	3740	9650	1310	--	1206	1290	12	--	--	298

Ningbo DHK Precision Bearing Co., Ltd.

0+

Years Experience Working

0+

Customer Service

0+

Patented Technology

CERTIFICATE

DHK has passed IATF16949 quality system certification and ISO14001 environmental management system certification；and DHK is a national high-tech enterprise.

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

2024-05-07 Industry News

Using improper or damaged rolling mill bearings can have significant consequences in terms of safety and performance: Increased risk of machinery failure: The ramifications of be...
MORE
How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

2024-05-01 Industry News

Environmental factors like temperature and humidity can significantly impact the performance of rolling mill bearings in several ways:Temperature Effects on Lubrication: Temperatur...
MORE
Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

2024-04-22 Industry News

Alignment of screw compressor bearings is critical for optimizing performance and minimizing wear. Here are some specific alignment requirements:Parallel Alignment: Achieving preci...
MORE
What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

2024-04-15 Industry News

Installing and mounting bearings correctly is crucial for ensuring the proper functionality and longevity of engineering machinery. Here are some best practices:Cleanliness: Thorou...
MORE
What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

2024-04-08 Industry News

Both over-lubrication and under-lubrication of motor bearings can lead to detrimental effects on their performance and lifespan. Here are the potential risks associated with each:O...
MORE
How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

2024-04-01 Industry News

Factors such as load capacity and rotational speed requirements are crucial considerations when selecting bearings for agricultural applications because they directly affect the pe...
MORE

Industry Knowledge Expansion

1. Structural Integrity: Ensuring Reliability and Stability

Series NCF Single Row Full Complement Cylindrical Roller Bearings are meticulously engineered to prioritize structural integrity, a cornerstone of their reliability and stability. The design philosophy behind these bearings revolves around creating a framework that can withstand the rigors of industrial environments while maintaining consistent performance over extended periods. At the heart of the structural integrity of Series NCF Bearings lies their robust construction, characterized by precision machining and high-quality materials. The incorporation of two integral flanges on the inner ring provides crucial support and rigidity, effectively minimizing flexing and deformation under load. This feature not only enhances the bearings' ability to maintain accurate alignment but also ensures optimal load distribution across the rolling elements. The outer ring of Series NCF Bearings is equally critical to their structural integrity. With one integral flange on one side and a retaining ring seated in a circumferential groove on the opposite side, the outer ring reinforces the overall stability of the bearing assembly. This configuration prevents lateral movement and axial displacement of the rollers, thereby enhancing the bearings' resistance to misalignment and minimizing the risk of premature failure. The seamless integration of components within the bearing assembly is essential for preserving structural integrity. Each element, from the cylindrical rollers to the raceways and cage (in the case of bearings equipped with one), is meticulously designed to work in harmony, maximizing load-bearing capacity and minimizing stress concentrations.

2.Reduced Friction and Heat Generation: Enhancing Efficiency and Performance

Efficiency is paramount in modern industrial machinery, and Series NCF Single Row Full Complement Cylindrical Roller Bearings excel in minimizing friction and heat generation, thereby optimizing overall system performance. The design of Series NCF Single Row Full Complement Cylindrical Roller Bearings is optimized to reduce frictional forces during operation. By utilizing a full complement of cylindrical rollers, these bearings maximize surface contact area with the raceways, distributing load evenly and minimizing localized pressure points. This uniform distribution of load not only reduces friction but also minimizes wear on contacting surfaces, prolonging the service life of the bearing assembly. The precision machining of the cylindrical rollers and raceways ensures smooth and efficient rotation, further minimizing energy losses due to friction. This characteristic is particularly beneficial in high-speed applications where even minor reductions in friction can lead to significant improvements in energy efficiency and operating costs. The efficient operation of Series NCF Single Row Full Complement Cylindrical Roller Bearings contributes to the reduction of heat generation within the bearing assembly. By minimizing frictional losses, these bearings produce less heat during operation, thereby reducing the risk of thermal expansion and associated performance issues. This is especially critical in applications where temperature fluctuations can impact the dimensional stability of critical components and compromise overall system performance.

Tel
+86-574-86597612
Email
ken@dhk-intl.com
Phone
+86-13957821917
Fax
+86-574-86597652

Add

Building 31, Chuang E Huigu, No.777, West Zhongguan RoadZhenhai Economic Development Zone, Ningbo, Zhejiang, China

Web Menu

Product Search

Language

Exit Menu

Series NCF-Single Row Full Complement Cylindrical Roller Bearings OEM/ODM

Categories

How Can We Help You?

Series NCF-Single Row Full Complement Cylindrical Roller Bearings

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add

Web Menu

Product Search

Language

Share

Exit Menu

Series NCF-Single Row Full Complement Cylindrical Roller Bearings OEM/ODM

Categories

How Can We Help You?

Series NCF-Single Row Full Complement Cylindrical Roller Bearings

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add
