Four Point Contact Ball Bearings-Four Point Contact Ball Bearings

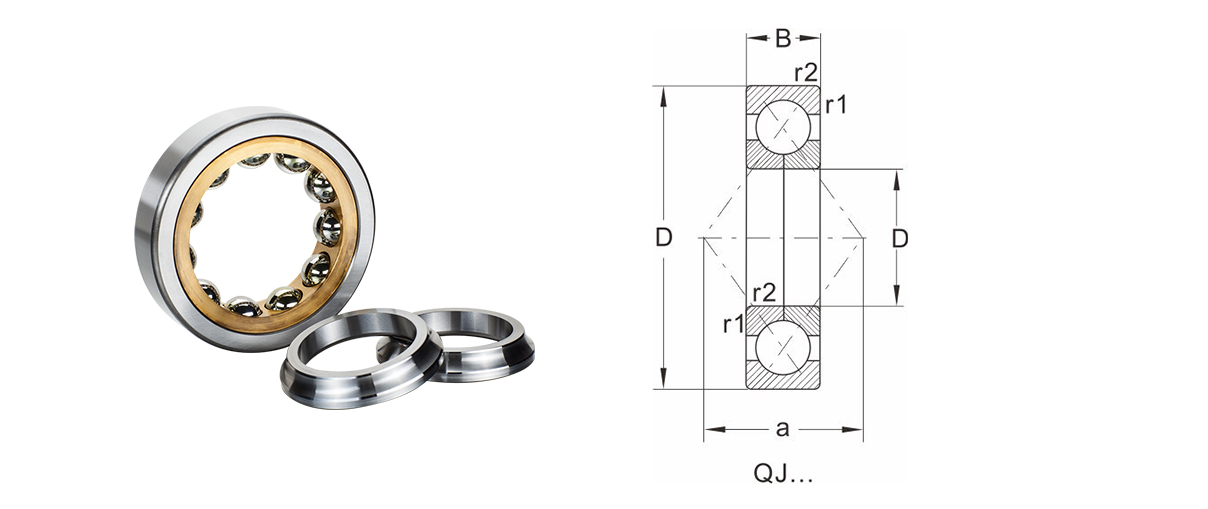

  • QJ

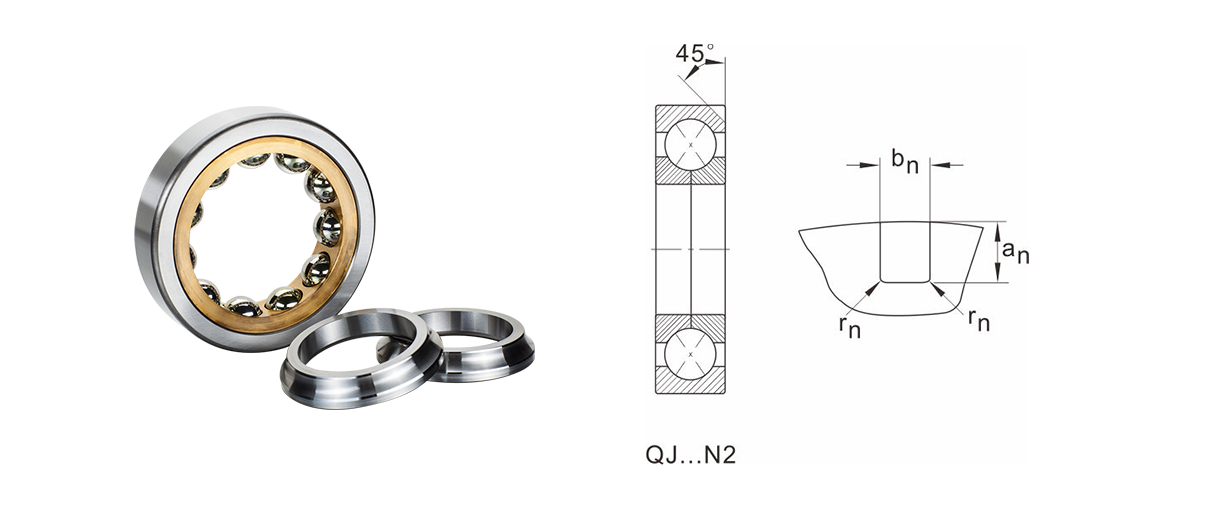

  • QJ...N2
CONTACT US

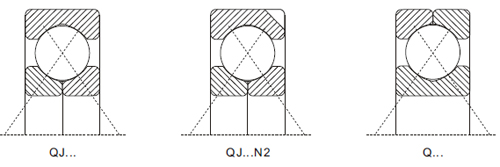

  • Design Variants
  • Cage
  • Tolerance
  • Internal clearance
Model
 Dimensions Rated load C5(um) Extreme speed Weight
d
D
B
 r1,r2 Min a an bn rn Dynamic load Cr Static load Cor Grease lubrication Oil lubrication
QJ204.MPA
20
47
14
 1 23 -- -- -- 22.7 16 12000 17000 0.14
QJ304.MPA
20
52
15
 1.1 26 -- -- -- 30 19.6 10000 15000 18
QJ205.MPA
25
52
15
 1 27 -- -- -- 25.3 19.8 9500 14000 0.17
QJ305.MPA
25
62
17
 1 31 -- -- -- 44 31.5 9500 13500 0.25
QJ206.MPA
30
62
16
 1 32 -- -- -- 38.5 30 8500 12000 0.3
QJ306.MPA
30
72
19
 1.1 36 -- -- -- 55 40.5 7500 10000 0.37
QJ207.MPA
35
72
17
 1.1 42 -- -- -- 49.8 40 7500 10000 0.46
QJ307.MPA
35
80
21
 1.5 46 -- -- -- 61 47 7000 9500 0.5
QJ208.MPA
40
80
18
 1.1 42 -- -- -- 55.9 50.4 6700 9000 0.39
QJ308.MPA
40
90
23
 1.5 46 -- -- -- 79 63.5 6300 8500 0.69
QJ209.MPA
45
85
19
 1.1 45 -- -- -- 61.7 55.1 6300 8500 0.48
QJ309.MPA
45
100
25
 1.5 51 -- -- -- 93.7 77.3 5600 7500 0.95
QJ210.MPA
50
90
20
 1.1 49 -- -- -- 64.2 60.4 5600 7500 0.64
QJ310.MPA
50
110
27
 2 56 -- -- -- 118 99 5000 6700 1.37
QJ211.MPA
55
100
21
 1.5 54 -- -- -- 80 76 5300 7000 0.68
QJ311.MPA
55
120
29
 2 61 -- -- -- 135 116 4500 6000 1.74
QJ212.MPA
60
110
22
 1.5 60 -- -- -- 92 87 4800 6300 0.87
QJ312.MPA
60
130
31
 2.1 67 -- -- -- 154 134 1300 5600 2.18
QJ213.MPA
65
120
23
 1.5 65 -- -- -- 109 106 4300 5600 1.24
QJ313.MPA
65
140
33
 2.1 72 -- -- -- 174 154 4000 5300 2.69
QJ214.MPA
70
125
24
 1.5 68 -- -- -- 114 115 4300 5600 1.39
QJ314.MPA
70
150
35
 2.1 77 -- -- -- 192 174 3600 4800 3.25
QJ215.MPA
75
130
25
 1.5 72 -- -- -- 118 123 4000 5300 1.77
QJ315 N2.MPA
75
160
37
 2.1 82 10.1 8.5 2 212 204 3400 4500 3.93
QJ216.MPA
80
140
26
 2 77 -- -- -- 138 146 3600 4800 1.8
QJ316 N2.MPA
80
170
39
 2.1 88 10.1 8.5 2 230 229 3200 4300 4.61
QJ217.MPA
85
150
28
 2 82 -- -- -- 153 160 3400 4500 2.25
QJ317 N2.MPA
85
180
41
 3 93 11.7 10.5 2 248 255 3000 4000 5.49
QJ218.MPA
90
160
30
 2 88 8.1 6.5 1 175 186 3200 4300 2.89
QJ318 N2.MPA
90
190
43
 3 98 11.7 10.5 2 267 283 2800 3800 6.34
QJ219 N2.MPA
95
170
32
 2.1 93 8.1 6.5 1 199 213 3000 4000 3.37
QJ319 N2.MPA
95
200
45
 3 103 11.7 10.5 2 258 313 3600 3600 7.4
QJ1020.MPA
100
150
24
 1.5 88 -- -- -- 106 134 3200 4300 1.6
QJ220N2.MPA
100
180
34
 2.1 98 10.1 8.5 2 225 240 2800 3800 4.05
QJ320N2.MPA
100
215
47
 3 110 11.7 10.5 2 307 340 2400 3400 9.3
QJ1020N2.MPA
105
160
26
 2 93 6.5 6.5 1 124 156 3000 4000 2
QJ221N2.MPA
105
190
36
 2.1 103 10.1 8.5 2 242 270 2600 3600 4.8
QJ321N2.MPA
105
225
49
 3 116 11.7 10.5 2 344 406 2200 3200 10.5
QJ1022N2.MPA
110
170
28
 2 98 6.5 6.5 1 146 186 2800 3800 2.5
QJ222N2.MPA
110
200
38
 2.1 109 10.1 8.5 2 265 305 2400 3400 5.6
QJ322N2.MPA
110
240
50
 3 123 11.7 10.5 2 364 430 2000 3000 12
QJ224N2.MPA
120
215
40
 3 117 11.7 10.5 2 286 340 2200 3200 6.95
QJ324N2.MPA
120
260
55
 4 133 11.7 10.5 2 390 490 1900 2800 15.3
QJ226N2.MPA
130
230
40
 3 126 11.7 10.5 2 296 365 1900 2800 7.75
QJ326N2.MPA
130
280
58
 4 144 12.7 10.5 2 423 560 1800 2600 19.5
QJ228N2.MPA
140
250
42
 3 137 11.7 10.5 -- 325 440 1800 2600 9.85
QJ328N2.MPA
140
300
62
 4 154 12.7 10.5 -- 468 640 1700 2400 23
QJ328.MPA
140
300
62
 4 154 -- -- -- 468 640 1700 2400 23.3
QJ1030N2.MPA
150
225
35
 2.1 131 8.1 6.5 1 216 305 1900 2800 5.25
QJ1030.MPA
150
225
35
 2.1 131 -- -- -- 216 305 1900 2800 5.29
QJ230N2.MPA
150
270
45
 3 147 11.7 10.5 2 338 465 1700 2400 12.5
QJ330N2.MPA
150
320
65
 4 165 12.7 10.5 2 494 710 1600 2200 29
QJ1030N2.MPA
160
240
38
 2.1 140 10.1 8.5 1 247 355 1800 2600 6.45
QJ232N2.MPA
160
290
48
 3 158 12.7 10.5 2 390 570 1600 2200 15.2
QJ1032N2.MPA
160
340
68
 4 175 12.7 10.5 2 540 815 1500 2000 34.5
QJ1034N2.MPA
170
260
42
 2.1 151 -- -- 1 292 410 1700 2400 8.23
QJ234N2.MPA
170
310
52
 4 168 12.7 10.5 2 397 600 1600 2200 19.5
QJ334N2.MPA
170
360
72
 4 186 12.7 10.5 2 618 965 1400 2200 41.5
QJ1036.MPA
180
280
46
 2.1 161 -- -- -- 338 510 1600 2200 10.7
QJ223N2.MPA
180
320
52
 4 175 12.7 10.5 2 436 680 1500 2000 20.5
QJ336N2.MPA
180
380
75
 4 196 12.7 10.5 2 637 1020 1300 1800 47.5
QJ1038N2.MPA
190
290
16
 2.1 168 11.7 10.5 1 338 510 1600 2200 11.5
QJ238N2.MPA
190
340
55
 4 186 12.7 10.5 2 488 780 1400 1900 24.5
QJ338N2.MPA
190
400
78
 5 207 12.7 10.5 -- 735 1250 1200 1600 52.1
QJ1040N2.MPA
200
310
51
 2.1 179 12.7 10.5 2 390 620 1500 2000 14.7
QJ240N2.MPA
200
360
58
 4 196 12.7 10.5 2 507 850 1300 1800 28.5
QJ340N2.MPA
200
420
80
 5 217.1 15 12.5 -- 570 1270 1200 1600 55.3
QJ1044.MPA
220
340
56
 3 196 -- -- -- 442 750 1300 1800 17.8
QJ244N2.MPA
220
400
65
 4 217 12.7 10.5 2 553 980 1100 1600 39.5
QJ334N2.MPA
220
160
88
 5 238 15 12.5 -- 780 1400 1000 1500 78.5
QJ1048.MPA
240
360
56
 3 210 -- -- -- 449 780 1200 1700 20.9
QJ248N2.MPA
240
440
72
 4 238 15 12.5 -- 650 1200 1000 1500 53
QJ1052.MPA
260
400
65
 4 231 -- -- -- 540 1000 1000 1500 31.5
QJ252N2.MPA
260
480
80
 5 259 15 12.5 -- 728 1430 900 1300 68
QJ1056N2.MPA
280
420
65
 4 245 15 12.5 -- 553 1060 950 1400 33.5
QJ1256N2.MPA
280
500
90
 5 390 15 12.5 -- 728 1460 900 1300 82
QJ1060N2.MPA
300
460
74
 4 266 15 12.5 -- 650 1340 900 1300 47.5
QJ1260N2.MPA
300
540
98
 5 420 20 15.5 -- 832 1760 850 1200 105
QJ1064N2.MPA
320
480
74
 4 280 15 12.5 -- 663 1400 850 1200 50
QJ1264N2.MPA
320
580
105
 5 450 20 15 -- 923 2040 800 1100 130
QJ1068N2.MPA
340
520
82
 5 301 15 12.5 -- 780 1700 800 1100 66.3
QJ1072N2.MPA
360
540
82
 5 505 15 12.5 -- 793 1800 800 1100 70.5
QJ1272N2.MPA
360
650
122
 6 329 25 20.5 -- 1110 2600 700 950 160
QJ1076N2.MPA
380
560
82
 5 530 15 12.5 -- 819 1900 750 1000 73.5
QJ1276N2.MPA
380
680
132
 6 350 25 20.5 -- 1170 2850 670 900 220
QJ1080N2.MPA
400
600
90
 5 343 15 12.5 -- 904 2160 700 950 95.5
QJ1280N2.MPA
400
720
140
 6 364 25 20.5 -- 1300 3250 600 800 265
QJ1984.MPA
420
560
65
 4 590 -- -- -- 637 1600 700 950 51
QJ1084N2.MPA
420
620
90
 5 364 15 12.5 -- 923 2280 670 900 99.5
QJ1284N2.MPA
420
760
150
 7.5 590 25 20.5 -- 1430 3750 560 750 315
QJ1988N2.MPA
440
600
74
 4 364 15 12.5 -- 761 1900 670 900 65
QJ1088N2.MPA
440
650
94
 6 382 20 15.5 -- 995 2500 630 850 115
QJ1288N2.MPA
440
790
155
 7.5 615 32 20.5 -- 1400 3750 560 750 350
QJ1292N2.MPA
460
680
100
 6 399 20 15.5 -- 1040 2650 600 800 130
QJ1292N2.MPA
460
830
165
 7.5 645 32 20.5 -- 1530 4250 530 700 415
QJ1096N2.MPA
480
700
100
 6 413 20 15.5 -- 1060 2800 560 750 135
QJ1296N2.MPA
480
870
170
 7.5 675 32 20.5 -- 1680 4750 500 670 470
