Series FCD-Four Row Cylindrical Roller Bearings

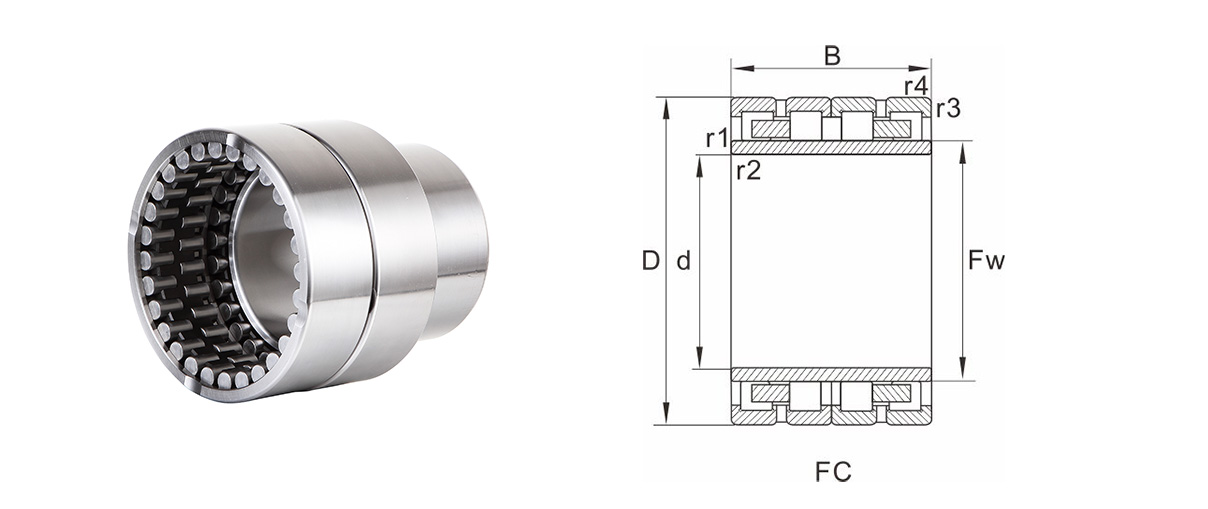

FC

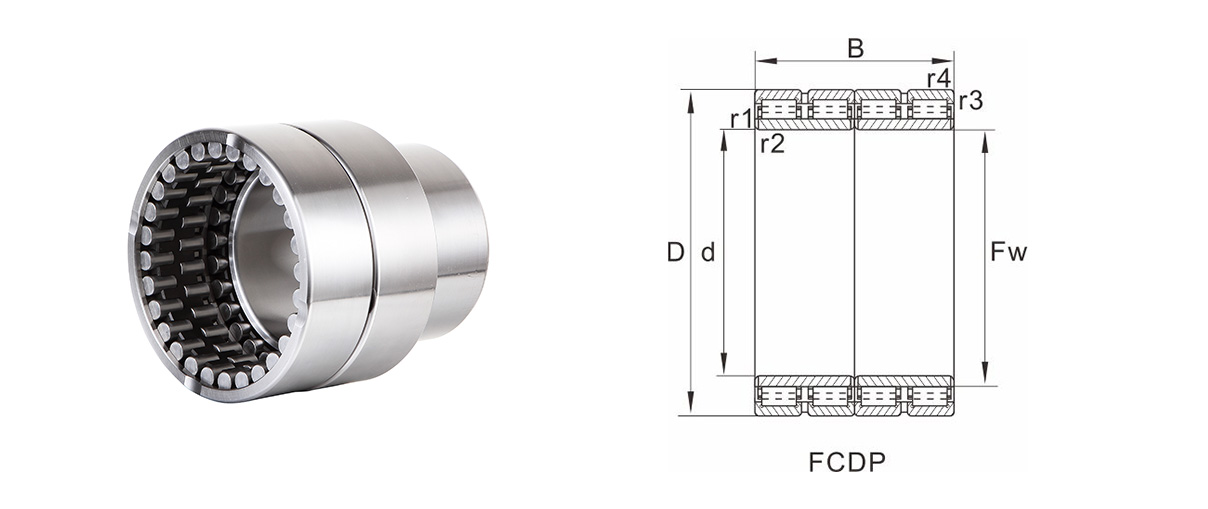

FCD
FCDP

Design Variants
Cage
Tolerance
Internal clearance

Four row cylindrical roller bearings have three basic types: FC, FCD and FCDP type, shown as the follow sketch.

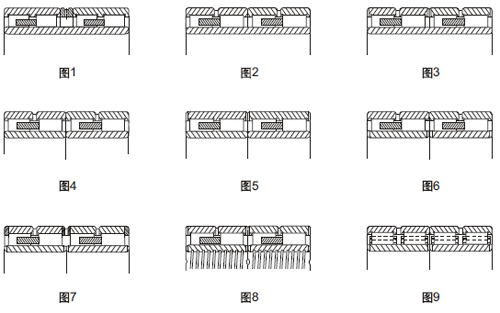

On the three basic types, considering the application and maintenance there are many variants detail structure. The normally featured structure is shown as following sketch:

In bearing table have listed out bearing application data and reference structure sketch number for the bearings in common lese, also have listed out some reference designation of the most famous bearing company, so to make it easy for you to select.

DHK can produce other special bearings according to customer request.
DHK four row cylindrical roller bearings are produced either solid brass cages or pin-type steel cages.

DHK four row cylindrical roller bearings are produced to the normal tolerance class (PN) or closer tolerance class such as P6 or P5 upon request.

Detailed tolerance values are listed in tolerance of radial bearings. Page 8.

Tolerances for DHK four row cylindrical roller bearings (excluding tapered roller bearings)

All dimensions shown in (mm):

Tolerances in (um):

Inner Ring

PN/(Normal)

Nominal Bore diameter		Deviation dmp	Variation Vdp Series			Variation Vdmp	Taper bore 1:12 Deviation/ Variation
>	<=	△dmp	7．8．9	0．1	2．3．4	Vdmp	△dmp	△d1mp-dmp	Vdp
2.5 10		0 -8	10	8	6	6	+15 0	+15 0	10
10 18		0 -8	10	8	6	6	+18 0	+18 0	10
18 30		0 -10	13	10	8	8	+21 0	+21 0	13
30 50		0 -12	15	12	9	9	+25 0	+25 0	15
50 80		0 -15	19	19	11	11	+30 0	+30 0	19
80 120		0 -20	25	25	15	15	+35 0	+35 0	25
120 180		0 -25	31	31	19	19	+40 0	+40 0	31
180 250		0 -30	38	38	23	23	+46 0	+46 0	38
250 315		0 -35	44	44	26	26	+52 0	+52 0	44
315 400		0 -40	50	50	30	30	+57 0	+57 0	50
400 500		0 -45	56	56	34	34	+63 0	+63 0	56
500 630		0 -50	63	63	38	38	+70 0	+70 0
630 800		0 -75					+80 0	+80 0
800 1000		0 -100					+90 0	+90 0
1000 1250		0 -125					+105 0	+105 0
1250 1600		0 -160
1600 2000		0 -200

Outer ring

PN/(Normal)

Nominal Outer diameter		Deviation	Variation Vdp Series			Sealed bearing	Variation	Radial runout
>	<=	△Dmp	7．8．9	0．1	2．3．4	2 3 4	VDmp	Kea
6 18		0 -8	10	8	6	10	6	15
18 30		0 -9	12	9	7	12	7	15
30 50		0 -11	14	11	8	16	8	20
50 80		0 -13	16	13	10	20	10	25
80 120		0 -15	19	19	11	26	11	35
120 150		0 -18	23	23	14	30	14	40
150 180		0 -25	31	31	19	38	19	45
180 250		0 -30	38	38	23		23	50
250 315		0 -35	44	44	26		26	60
315 400		0 -40	50	50	30		30	70
400 500		0 -45	56	56	34		34	80
500 630		0 -50	63	63	38		38	100
630 800		0 -75	94	94	55		55	120
800 1000		0 -100	125	125	75		75	140
1000 1250		0 -125						160
1250 1600		0 -160						190
1600 2000		0 -200						220
2000 2500		0 -250						250

DHK can provide four row cylindrical roller bearings with variants radial clearance upon to the request.

For detailed clearance group values, see page 128.

Internal Clearance Groups Of DHK Cylindrical Roller Bearings With Cylindrical Bore

Bore Dia.(mm)
>	<=	C1（um）	C2（um）	CN（um）	C3（um）	C4（um）	C5（um）
-- 24		5 15	0 25	20 45	35 60	50 75	75 100
24 30		5 15	0 25	20 45	35 60	50 75	75 100
30 40		5 15	5 30	25 50	45 70	60 85	85 110
40 50		5 18	5 35	30 60	50 80	70 100	100 130
50 65		5 20	10 40	40 70	60 90	80 100	110 140
65 80		10 25	10 45	40 75	65 100	90 125	125 160
80 100		10 30	15 50	50 85	75 110	105 140	140 175
100 120		10 30	15 55	50 90	85 125	125 165	165 205
120 140		10 35	15 60	60 105	100 145	145 190	190 235
140 160		10 35	20 70	70 120	115 165	165 215	215 265
160 180		10 40	25 75	75 125	120 170	170 220	220 270
180 200		15 45	35 90	90 145	140 195	195 250	250 305
200 225		15 50	45 105	105 165	160 220	220 280	280 340
225 250		15 50	45 110	110 175	170 235	235 300	300 365
250 280		20 55	55 125	125 195	190 260	260 330	330 400
280 315		20 60	55 130	130 205	200 275	275 350	350 425
315 355		20 65	65 145	145 225	225 305	305 385	385 465
355 400		25 75	100 190	190 280	280 270	570 460	460 550
400 450		25 85	110 210	210 310	310 410	410 510	510 610
450 500		25 95	110 220	220 330	330 440	440 550	550 660
500 560		25 100	120 240	240 360	360 480	480 600	600 720
560 630		30 110	140 260	260 380	380 500	500 620	620 740
630 710		30 130	145 285	285 425	425 565	565 705	705 845
710 800		35 140	150 310	610 470	470 630	630 790	790 950
800 900		35 160	180 350	350 520	520 690	690 860	860 1030
900 1000		35 170	200 390	390 580	580 770	770 960	960 1150
1000 1120		50 200	220 430	430 640	640 850	850 1060	1060 1270
1120 1250		50 200	230 470	470 710	710 950	950 1190	1060 1270
1250 1400		50 200	270 530	530 790	790 1050	1050 1310	1060 1270
1400 1600		50 200	330 610	610 890	890 1170	1170 1450	1060 1270
1600 1800		50 200	380 700	700 1020	1020 1340	1340 1660	1060 1270
1800 2000		50 200	400 760	760 1120	1120 1480	1480 1840	1060 1270

Internal clearance groups of DHK cylindrical roller bearings with tapered bore

Bore Dia.(mm)
>	<=	C1（um）	C2（um）	CN（um）	C3（um）	C4（um）	C5（um）
-- 24		10 20	15 40	30 55	40 65	50 75	75 100
24 30		15 25	20 45	35 60	45 70	55 80	80 105
30 40		15 25	20 45	40 65	55 80	70 95	95 120
40 50		17 30	25 55	45 75	60 90	75 105	105 135
50 65		20 35	30 60	50 80	70 100	90 120	120 150
65 80		25 40	35 70	60 95	85 120	110 145	145 180
80 100		35 55	40 75	70 105	95 130	120 155	155 190
100 120		40 60	50 90	90 130	115 155	140 180	180 220
120 140		45 70	55 100	100 145	130 175	160 205	205 250
140 160		50 75	60 110	110 160	145 195	180 230	230 280
160 180		55 85	75 125	126 175	160 210	195 245	245 295
180 200		60 90	85 140	140 195	180 235	220 275	275 330
200 225		60 95	95 155	155 215	200 260	245 305	305 365
225 250		65 100	105 170	170 235	220 285	270 335	335 400
250 280		75 110	115 185	185 255	240 310	295 365	365 435
280 315		80 120	130 205	205 280	265 340	325 400	400 475
315 355		90 135	145 250	225 304	290 370	355 435	435 515
355 400		100 150	165 255	225 345	330 420	405 495	495 585
400 450		110 170	185 285	285 385	370 470	455 555	555 655
450 500		120 190	205 315	315 425	410 520	505 615	615 725
500 560		130 210	230 350	350 470	455 575	560 680	680 800
560 630		140 230	260 380	380 500	500 620	620 740	740 860
630 710		160 260	295 435	435 575	565 705	685 835	935 975
710 800		170 290	325 485	485 645	630 790	775 935	935 1095
800 900		190 330	370 540	540 710	700 870	860 1030	1030 1200
900 1000		210 360	410 600	600 790	780 970	960 1150	1150 1340
1000 1120		230 400	455 665	665 875	865 1075	1065 1275	1275 1485
1120 1250		230 400	490 730	730 970	960 1200	1200 1440	1275 1485
1250 1400		230 400	550 810	810 1070	1070 1330	1330 1590	1275 1485
1400 1600		230 400	640 920	920 1200	1200 1480	1480 1760	1275 1485
1600 1800		230 400	700 1020	1020 1340	1340 1660	1660 1980	1275 1485
1800 2000		230 400	760 1120	1120 1480	1480 1840	1840 2200	1275 1485

Model	Dimensions							Rated load		Weight	Reference models
designation	d	D	B	Fw	r1.2min	r3.4min	Design	Dynamic load	Static load	Ref.	SKF	FAG	NTN	NSK	KOYO
FCD100130260	500	650	260	542	6	6	5	4020	9750	225	319254/VJ202
FCD102146520	510	730	520	569	6	6	6	9520	22000	750	BC4-8009/HB1
FCD106156500	530	780	500	591	6	6	5	9350	20200	805	315040/VJ202
FCD106156570	530	780	570	595	6	6	10	11800	29200	960			4R10606	530RV7813	106FC78570
FCD106156570A	530	780	570	601	6	6	10	11800	29200	1680	314517A	517689A	4R10602	530RV7811
FCD110160520	550	800	520	612	6	6	7	11700	26500	895	316115/VJ202
FCD110160520A	550	800	520	622	6	6	10	9450	27000	550			4R11001
FCD132164440	660	820	440	702	7.5	7.5	4	7260	20960	536	239509FA		4R13201
FCD132176450	660	880	450	727	7.5	7.5	5	8390	22000	792	313477/VJ202
FCD136188600	680	940	600	743	7.5	7.5	10	19000	42500	1295		533683
FCD4062230	200	310	230	229	2.1	2.1	5	1840	3500	64	313639/VJ202	503901		200RV3102
FCD4460200	220	300	200	240	2.1	2.1	2	1800	3900	41
FCD4462204	220	310	204	247	2.1	2.1	1	1570	3750	49.8			4R4425
FCD4462215	220	310	215	242	2.1	2.1	1	1650	3850	51.5			4R44202
FCD44622225A	220	310	225	245	2.1	2.1	1	1740	3900	54.9		506869	4R4416	220RV3102	44FC31225
FCD4462225	220	310	225	244	2.1	2.1	1	1740	3900	54.5	313894B	514461	4R4449		4CR220W
FCD4462265	220	310	265	245	2.1	2.1	2	1970	4700	63.5
FCD4464210	220	320	210	246	2.1	2.1	1	1800	3700	57		509216	4R4444	220RV3203	44FC32210
FCD4464210A	220	320	210	248	2.1	2.1	1	1790	3650	56			4R4429	220RV3201	44FC32210-1
FCD4466230	220	330	230	249	2.1	2.1	5	2050	4000	68.5	314889/VJ202	541452
FCD4468210	220	340	210	250	2.1	2.1	4	1910	3850	70.5
FCD4469210	220	345	210	250	2.1	2.1	4	1910	3850	73.8
FCD4666170	230	330	170	260	2.1	2.1	2	1150	2970	47.4
FCD5068230	250	340	230	270	3	3	4	1700	4350	65
FCD5070230	250	350	230	278	3	3	4	1900	4350	68.7
FCD5272204	260	360	204	287	3	3	5	1690	3850	64.5	314997/VJ202
FCD5272260	260	360	260	287	3	3	5	2300	5320	80			4R5231		52FC36260
FCD5276280A	260	380	280	295	3	3	4	2420	5940	108
FCD5476275	270	380	275	298	3	3	4	2700	6300	97.8
FCD5478240	270	390	240	298	3	3	4	2236	5950	94
FCD5480220	270	400	220	305	3	3	4	2410	6100	95.5
FCD5680285	280	400	285	316	3	3	5	2850	6600	121	314070/VJ202	513342		280RV4021
FCD5682300	280	410	300	313	4	4	5	3170	6860	134	314897/VJ202	510350
FCD5684280	280	420	280	318	4	4	4	2945	7212	137
FCD5878190	290	390	190	316	4	4	5	1940	4320	67	635195
FCD6080300	300	400	300	328	4	4	5	2590	6560	115			4R6014	290RV4021	60FC40300
FCD6084180	300	420	180	332	4	4	4	2020	6440	92.4					60FC42218
FCD6492240	320	460	240	364	4	4	5	2720	7200	140	BC4B322216/VJ202
FCD6492300	320	460	300	357	4	4	4	2940	8430	164
FCD68292260	340	460	260	370	4	4	4	2800	7300	125
FCD6896350	340	480	350	378	4	4	6	4580	11100	211					68FC48350-2
FCD6896350A	340	480	350	378	4	4	9	4400	9830	205	314485A	527634	4R6819		68FC48350D
FCD6996350	345	480	350	376	4	4	4	4180	9780	192				345RV4821
FCD70100380	350	500	380	389	5	5	4	4200	10080	240	314563/VJ202	532381.N12BA
FCD70104300	350	520	300	401	5	5	4	4070	79050	220	BC2B319878/VJ202
FCD70104300/HC	350	520	300	401	5	5	8	4290	9000	220	BC4B326909/HA3
FCD72100250	360	500	250	394	4	4	4	3040	6620	146	BC2B320075/VJ202
FCD74104400	370	520	400	409	4	4	1	4680	10500	260			4R7404
FCD74104400	370	520	400	413	4	4	6	4740	11900	268					74FC52400W
FCD76104280	380	520	280	426	4	4	4	2580	6210	185	NNU4976B/DRW33
FCD76112300	380	560	300	424	4	4	10	4700	9650	260	BC4B322189
FCD78110400	390	550	400	434	4	4	4	4890	11780	304				390RV5521	78FC55400AW
FCD80108440	400	590	440	450	5	5	4	6630	14940	415	315802/VJ202
FCD84112260	420	580	260	468	5	5	5	3740	9620	210	BC2B320074/VAJ202
FCD84112400	420	560	400	458	5	5	4	4950	13000	278				420RV5602	84FC56400
FCD84116320	420	580	320	463	5	5	4	4680	10800	250	313555B/VJ202	533053
FCD84124300	420	620	300	473	5	5	4	820	15800	416
FCD84124400	420	620	400	473	5	5	7	6930	15600	430	314391/VJ202
FCD86118420	430	591	420	476	5	5	5	5200	13400	355			4R8605	430RV5921
FCD88124450	440	620	450	490	5	5	5	4150	19000	450				440RV6221
FCD90126450	450	630	450	500	5	5	5	6950	17500	440				450RV6321	90FC63450A
FCD92134500	460	670	500	522	5	5	5	8900	22700	601				460RV6721
FCD95280335	260	400	335	294	3	3	6	3750	7340	149		521065			52FC40335W

Ningbo DHK Precision Bearing Co., Ltd.

0+

Years Experience Working

0+

Customer Service

0+

Patented Technology

CERTIFICATE

DHK has passed IATF16949 quality system certification and ISO14001 environmental management system certification；and DHK is a national high-tech enterprise.

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

2024-05-07 Industry News

Using improper or damaged rolling mill bearings can have significant consequences in terms of safety and performance: Increased risk of machinery failure: The ramifications of be...
MORE
How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

2024-05-01 Industry News

Environmental factors like temperature and humidity can significantly impact the performance of rolling mill bearings in several ways:Temperature Effects on Lubrication: Temperatur...
MORE
Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

2024-04-22 Industry News

Alignment of screw compressor bearings is critical for optimizing performance and minimizing wear. Here are some specific alignment requirements:Parallel Alignment: Achieving preci...
MORE
What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

2024-04-15 Industry News

Installing and mounting bearings correctly is crucial for ensuring the proper functionality and longevity of engineering machinery. Here are some best practices:Cleanliness: Thorou...
MORE
What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

2024-04-08 Industry News

Both over-lubrication and under-lubrication of motor bearings can lead to detrimental effects on their performance and lifespan. Here are the potential risks associated with each:O...
MORE
How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

2024-04-01 Industry News

Factors such as load capacity and rotational speed requirements are crucial considerations when selecting bearings for agricultural applications because they directly affect the pe...
MORE

Industry Knowledge Expansion

1. Introduction to Series FCD-Four Row Cylindrical Roller Bearings

The evolution of Series FCD bearings stems from a comprehensive understanding of the challenges encountered in industries such as steel manufacturing, mining, and pulp and paper production, where machinery operates under extreme conditions of pressure, temperature, and load. At their core, Series FCD bearings boast a construction engineered to withstand the most punishing operating conditions. The hallmark of these bearings is their arrangement of four rows of cylindrical rollers, meticulously crafted to distribute radial loads with unparalleled uniformity. This innovative design not only enhances load-carrying capacity but also minimizes stress concentrations, thereby extending the operational lifespan of the bearing. The outer raceway, meticulously machined to exacting tolerances, provides a robust housing for the rollers, safeguarding against deformation and wear under heavy loads, ensuring optimal alignment and smooth operation under dynamic loads. This meticulous craftsmanship translates into reduced friction, minimized power loss, and enhanced overall efficiency in heavy machinery applications.

2. Functionality and Performance

Series FCD bearings exhibit remarkable axial load-carrying capacity, making them well-suited for applications involving heavy axial loads or combined radial and axial loads. Whether subjected to high-speed rotation, oscillating motion, or intermittent shock loads, these bearings maintain their integrity and performance, providing reliable support and stability to critical machinery components.This capability is particularly advantageous in applications where combined radial and axial loads are prevalent, such as in gearboxes, extruders, and paper-making machinery. The ability to support heavy axial loads ensures optimal performance and reliability, even in the most demanding operating conditions, thereby instilling confidence in the longevity and efficiency of industrial processes. The multi-row configuration, coupled with precision-ground surfaces, facilitates smooth and efficient operation, minimizing frictional losses and maximizing energy efficiency. This inherent design enables Series FCD bearings to excel in applications characterized by high radial loads, such as rolling mills, crushers, and heavy machinery, where the ability to withstand extreme forces is paramount.

Tel
+86-574-86597612
Email
ken@dhk-intl.com
Phone
+86-13957821917
Fax
+86-574-86597652

Add

Building 31, Chuang E Huigu, No.777, West Zhongguan RoadZhenhai Economic Development Zone, Ningbo, Zhejiang, China

Web Menu

Product Search

Language

Exit Menu

Series FCD-Four Row Cylindrical Roller Bearings OEM/ODM

Categories

How Can We Help You?

Series FCD-Four Row Cylindrical Roller Bearings

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add

Web Menu

Product Search

Language

Share

Exit Menu

Series FCD-Four Row Cylindrical Roller Bearings OEM/ODM

Categories

How Can We Help You?

Series FCD-Four Row Cylindrical Roller Bearings

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add
