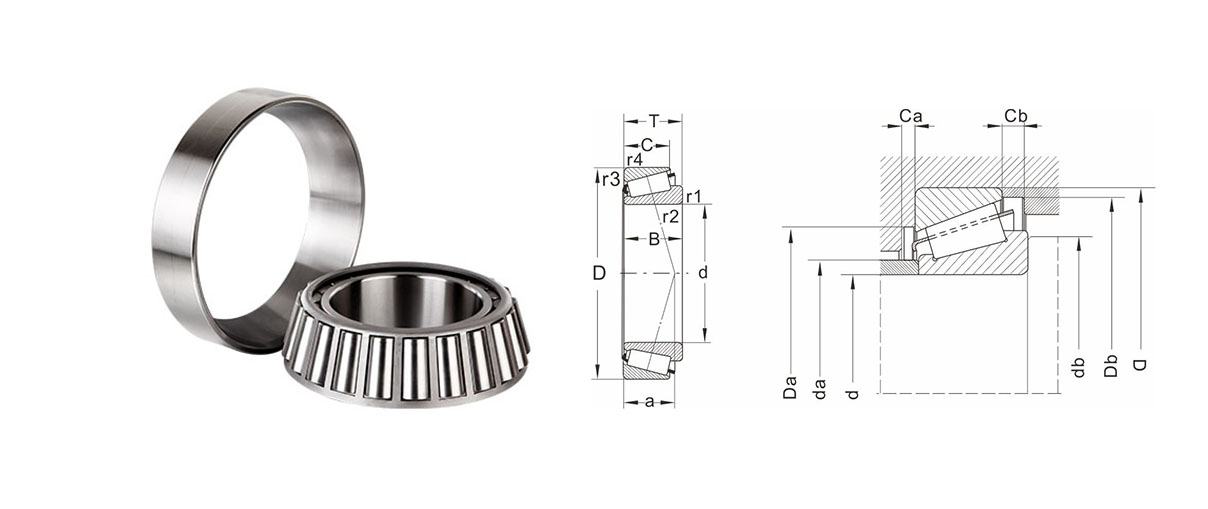

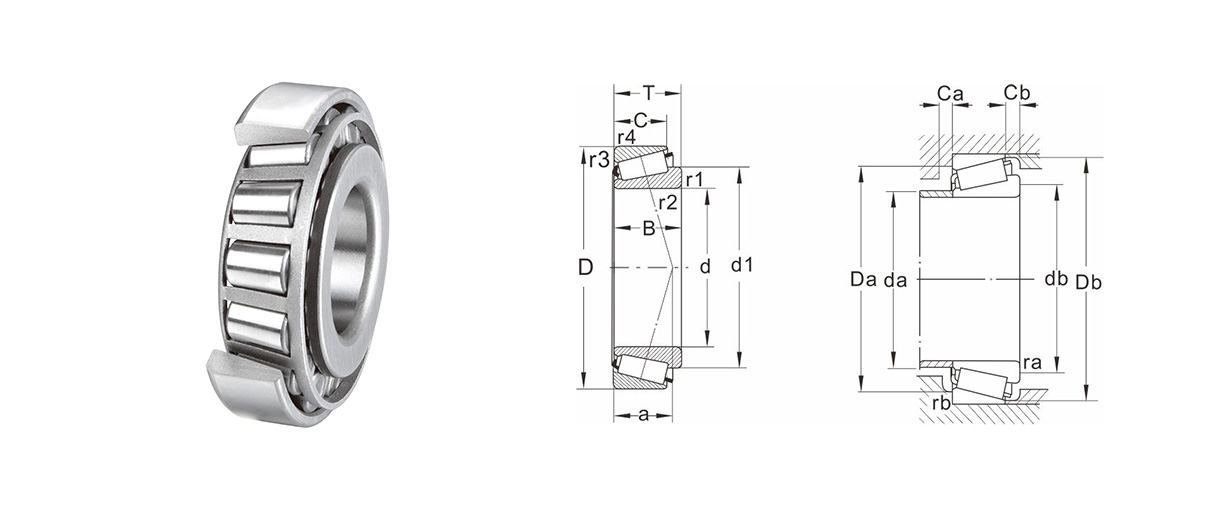

Series 32200-Single Row Tapered Roller Bearings

Metric Series
Inch series

Design Variants
Cage
Tolerance
Internal clearance

Additional the standard metric single row taper roller bearings listed in the bearing table, DHK also produced single row taper roller bearings with flanges on outer rings (suffix R), only outer rings of taper roller bearing (prefix L), inner rings with the cage and rollers (prefix R) and other special taper roller bearings according to customer

Due to the single row taper roller bearings only can accommodate one direction axial force, these bearings are frequently used as pairs. Upon request, DHK can provide these bearings at Face- to-Face arrangement (suffix DF), Back-to-Back arrangement (suffix DB) or in tandem arrangement (suffix DT), as shown in the below sketch.
DHK taper roller bearings are fitted with pressed steel cages as standard. Because the cages of taper roller bearings usually protrude beyond the bearing faces, special care must be taken to follow the recommended abutment dimensions.

DHK single row taper roller bearings are produced to normal tolerance class (PN) as standard.

These bearings also may be produced with closer tolerance such as P6X on request.

Detail tolerance values are listed in the chapter of tolerance of metric taper roller bearings, page 14. The width tolerance of paired bearings is decided by the clearance and Ts.

Tolerances for DHK metric taper roller bearings (excluding tapered roller bearings)

All dimensions shown in (mm):

Tolerances in (um):

Inner Ring

Tolerance class PN/(Normal)


Nominal bore diameter		Deviation	Variation	Variation	Ring width deviation	Radial runout	Ring width deviation
<=	<=	△dmp	Vdp	Vdmp	△Bs	Kia	△Ts	△T1s	△T2s
10 18		0 -12	12	9	0 -120	15	+2000	+1000	+1000
18 30		0 -12	12	9	0 -120	18	+2000	+1000	+1000
30 50		0 -12	12	9	0 -120	20	+2000	+1000	+1000
50 80		0 -15	15	11	0 -150	25	+2000	+1000	+1000
80 120		0 -20	20	15	0 -200	30	+200 -200	+100 -100	+100 -100
120 180		0 -25	25	19	0 -250	35	+350 -250	+150 -150	+200 -100
180 250		0 -30	30	23	0 -300	50	+350 -250	+150 -150	+200 -100
250 315		0 -35	35	26	0 -350	60	+350 -250	+150 -150	+200 -100
315 400		0 -40	40	30	0 -400	70	+400 -400	+200 -200	+200 -200
400 500		0 -45	45	34	0 -450	85	+400 -400
500 630		0 -50	50	38	0 -500	100	+500 -500
630 800		0 -75	75	56	0 -750	120	+600 -600
800 1000		0 -100	100	75	0 -1000	120	+750 -750
1000 1250		0 -1250			0 -1250	120	+1000 -1000
1250 1600		0 -160			0 -1600	120	+1500 -1500
1600 2000		0 -200			0 -2000	120	+1500 -1500

Outer Ring

Tolerance class PN/(Normal)

Nominal outer diameter		Deviation	Variation	Variation	Radial runout
<=	<=	△Dmp	VDp	VDmp	Kia
18 30		0 -12	12	9	18
30 50		0 -14	14	11	20
50 80		0 -16	16	12	25
80 120		0 -18	18	14	35
120 150		0 -20	20	15	40
150 180		0 -25	25	19	45
180 250		0 -30	30	23	50
250 315		0 -35	35	26	60
315 400		0 -40	40	30	70
400 500		0 -45	45	34	80
500 630		0 -50	50	38	100
630 800		0 -70	70	55	120
800 1000		0 -100	100	75	120
1000 1250		0 -125	125	94	120
1250 1600		0 -160	160	120	120
1600 2000		0 -200			120
2000 2500		0 -250

Tolerances for DHK metric taper roller bearings (excluding tapered roller bearings)

All dimensions shown in (mm):

Tolerances in (um):

Inner Ring

Tolerance class P6X

Nominal bore diameter		Deviation	Variation	Variation	Ring width deviation	Radial runout	Ring width deviation
<=	<=	△dmp	Vdp	Vdmp	△Bs	Kia	△Ts	△T1s	△T2s
10 18		0 -12	12	9	0 -50	15	+100 0	+50～0	+50～0
18 30		0 -12	12	9	0 -50	18	+100 0	+50～0	+50～0
30 50		0 -12	12	9	0 -50	20	+100 0	+50～0	+50～0
50 80		0 -15	15	11	0 -50	25	+100 0	+50～0	+50～0
80 120		0 -20	20	15	0 -50	30	+100 0	+50～0	+50～0
120 180		0 -25	25	19	0 -50	35	+150 0	+50～0	+100～0
180 250		0 -30	30	23	0 -50	50	+150 0	+50～0	+100～0
250 315		0 -35	35	26	0 -50	60	+200 0	+100～0	+100～0
315 400		0 -40	40	30	0 -50	70	+200 0	+100～0	+100～0
400 500
500 630
630 800
800 1000

Outer Ring
Tolerance class P6X

Nominal outer diameter		Deviation	Variation	Variation	Ring width deviation	Radial runout
<=	<=	△Dmp	VDp	VDmp	△Cs	Kea
18 30		0 -12	12	9	0 -100	18
30 50		0 -14	14	11	0 -100	20
50 80		0 -16	16	12	0 -100	25
80 120		0 -18	18	14	0 -100	35
120 150		0 -20	20	15	0 -100	40
150 180		0 -25	25	19	0 -100	45
180 250		0 -30	30	23	0 -100	50
250 315		0 -35	35	26	0 -100	60
315 400		0 -40	40	30	0 -100	70
400 500		0 -45	45	34	0 -100	80
500 630		0 -50	50	38	0 -100	100
630 800
800 1000

The width tolerance △Cs is identical to△Bs of inner ring of the same bearing

Tolerances for DHK metric taper roller bearings (excluding tapered roller bearings)

All dimensions shown in (mm):

Tolerances in (um):

Inner Ring

Tolerance class P5

Nominal bore diameter		Deviation	Variation	Variation	Ring width deviation	Radial runout	Side face runout
<=	<=	△dmp	Vdp	Vdmp	△Bs	Kia	Ｓd	△Ts
10 18		0 -7	5	5	0 -200	5	7	+200 -200
18 30		0 -8	6	5	0 -200	5	8	+200 -200
30 50		0 -10	8	5	0 -240	6	8	+200 -200
50 80		0 -12	9	6	0 -300	7	8	+200 -200
80 120		0 -15	11	8	0 -400	8	9	+200 -200
120 180		0 -18	14	9	0 -500	11	10	+350 -250
180 250		0 -22	17	11	0 -600	13	11	+350 -250
250 315		0 -25	19	13	0 -700	16	13	+350 -250
315 400		0 -30	23	15	0 -800	19	15	+400 -400
400 500		0 -35	26	18	0 -900	22	17	+400 -400
500 630		0 -40	30	20	0 -1000	26	20	+500 -500
630 800		0 -50	50	25	0 -1500	30	26	+600 -600
800 1000		0 -65	60	30	0 -2000	35	32	+750 -750

Outer Ring
Tolerance class P5

Nominal outer diameter		Deviation	Variation	Variation	Radial runout	Outside inclination variation
<=	<=	△Dmp	VDp	VDmp	Kea
18 30		0 -8	6	5	6	8
30 50		0 -9	7	5	7	8
50 80		0 -11	8	6	8	8
80 120		0 -13	10	7	10	9
120 150		0 -15	11	8	11	10
150 180		0 -18	14	9	13	10
180 250		0 -20	15	10	15	11
250 315		0 -25	19	13	18	13
315 400		0 -28	22	14	20	13
400 500		0 -33	25	17	23	15
500 630		0 -38	29	19	25	18
630 800		0 -45	34	23	30	20
800 1000		0 -60	45	30	35	25
1000 1250		0 -80	75	38	40	30
1250 1600		0 -100	90	45	45	35

The width tolerance △Cs is identical to△Bs of inner ring of the same bearing

Tolerances for DHK metric taper roller bearings (excluding tapered roller bearings)
All dimensions shown in (mm):
Tolerances in (um):

Inner Ring
Tolerance class P4

Nominal bore diameter		Deviation	Variation	Variation	Ring width deviation	Radial runout	Side face runout	Side face runout	Ring width deviation
<=	<=	△dmp △ds	Vdp	Vdmp	△Bs	kia	Sd	Sia	△Ts
10 18		0 -5	4	4	0 -200	3	3	3	+200 -200
18 30		0 -6	5	4	0 -200	3	4	4	+200 -200
30 50		0 -7	6	5	0 -240	4	4	4	+200 -200
50 80		0 -8	7	5	0 -300	4	5	4	+200 -200
80 120		0 -10	8	5	0 -400	5	5	5	+200 -200
120 180		0 -13	10	7	0 -500	6	6	7	+350 -250
180 250		0 -15	11	8	0 -600	8	7	8	+350 -250

Outer Ring
Tolerance class P4

Nominal outer diameter		Deviation	Variation	Variation	Radial runout	Outside inclination variation	Side face runout
<=	<=	△Dmp △Ds	VDp	VDmp	Kea	SD	Sea
18 30		0 -6	5	4	4	4	5
30 50		0 -7	5	5	5	4	5
50 80		0 -9	7	5	5	4	5
80 130		0 -10	8	5	6	5	6
130 150		0 -11	8	6	7	5	7
150 180		0 -13	10	7	8	5	8
180 250		0 -15	11	8	10	7	10
250 315		0 -18	14	9	11	8	10
315 400		0 -20	15	10	13	10	13

The width tolerance △Cs and VCs are identical to△Bs and VBs of inner ring of the same bearing

The clearance of single row taper roller bearings is adjusted one bearing against another during mounting.

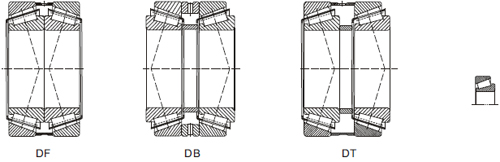

DHK taper roller bearing pairs arranged face-to- face (suffix DF) and back-to-back(suffix DB) are produced with internal clearance values, as listed in the table below. DHK can provide bearing pairs with special axial clearance upon request.

Axial Internal Clearance Of Paired DHK taper roller bearings,arranged face to face(DF) and back to back(DB)

Bore Dia. (mm)		Axial intcrnal clearance Series（μm）
>	<=	329 Min max	320 Min max X	330 Min max	331，3．2，332，332 Min max	303，323 Min max	313 Min max
-- 30		-- --	80 120	-- --	100 140	130 170	60 100
30 40		-- --	100 140	-- --	120 160	140 180	70 110
40 50		-- --	120 160	180 220	140 180	160 200	80 120
50 65		-- --	140 180	200 240	160 200	180 220	100 140
65 80		-- --	160 200	250 290	180 220	200 260	110 170
80 100		270 310	190 230	350 390	210 270	240 300	110 170
100 120		270 330	220 280	340 400	220 280	280 340	130 190
120 140		310 370	240 300	340 400	240 300	330 390	160 220
140 160		370 430	270 330	340 400	270 330	370 430	180 240
160 180		370 430	310 370	-- --	310 370	390 450	-- --
180 190		370 430	340 400	-- --	340 400	440 500	-- --
190 200		390 450	340 400	-- --	340 400	440 500	-- --
200 225		440 500	390 450	-- --	390 450	490 550	-- --
225 250		440 500	440 500	-- --	440 500	540 600	-- --
250 280		540 500	490 55	-- --	490 550	-- --	-- --
280 300		640 700	540 600	-- --	540 600	-- --	-- --
300 340		640 700	590 650	-- --	590 650	-- --	-- --

Model		Dimensions								Extreme speed		Rated load		Calculation factor			Abutment and fillet dimensions(mm)						Weight [kg]
DIN720	ISO355	d	D	B	C	T	r1,r2 min	r3,r4 min	a	Grease lubrication	Oil lubrication	Dynamic load	Static load	e	Y	Yo	Da max	db min	da min	Db min	Ca min	Cb min	Weight [kg]
32205	T2CD025	25	52	18	15	19.25	1	1	13	7500	10000	32.5	36	0.33	1.81	1	31	31	44	48	3	4	0.18
32206	T3DC030	30	62	20	17	21.25	1	1	16	6300	8500	54	63	0.37	1.6	0.88	37	36	52	59	3	4	0.28
32207	T3DC035	35	72	23	19	24.25	1.5	1.5	18	5300	7000	71	85	0.37	1.6	0.88	43	42	61	67	3	5.5	0.43
32208	T3DC040	40	80	23	19	24.75	1.5	1.5	19	4800	6300	80	95	0.37	1.6	0.88	48	47	68	75	3	5.5	0.56
32209	T3DC045	45	85	23	19	24.75	1.5	1.5	20	4300	5600	83	100	0.4	1.48	0.81	53	52	73	80	3	5.5	0.57
32210	T3DC050	50	90	23	19	24.75	1.5	1.5	21	4300	5600	88	110	0.42	1.43	0.79	58	57	78	85	3	5.5	0.6
32211	T3DC055	55	100	25	21	26.75	2	1.5	23	3600	4800	110	137	0.4	1.48	0.81	63	64	87	95	4	5.5	0.87
32212	T3EC060	60	110	28	24	29.75	2	1.5	24	3400	4500	134	170	0.4	1.48	0.81	69	69	95	104	4	5.5	1.14
32213	T3EC065	65	120	31	27	32.75	2	1.5	27	3000	4000	156	200	0.4	1.48	0.81	76	74	104	115	4	5.5	1.59
32214	T3EC070	70	125	31	27	33.25	2	1.5	28	2800	3800	163	216	0.42	1.43	0.79	80	79	108	119	4	6	1.7
32215	T4DC075	75	130	31	27	33.25	2	1.5	29	2600	3600	173	232	0.44	1.38	0.76	85	84	115	124	4	6	1.93
32216	T3EC080	80	140	33	28	35.25	2.5	2	31	2400	3400	200	265	0.42	1.43	0.79	90	90	122	134	5	7	2.18
32217	T3EC085	85	150	36	30	38.5	2.5	2	34	2200	3200	228	305	0.42	1.43	0.79	96	95	130	145	5	8.5	2.76
32218	T3FC090	90	160	40	34	42.5	2.5	2	36	2000	3000	260	360	0.42	1.43	0.79	102	100	138	152	5	8.5	3.78
32219	T3FC095	95	170	43	37	45.5	3	2.5	39	1900	2800	300	415	0.42	1.43	0.79	108	107	145	161	5	8.5	4.23
32220	T3FC100	100	180	46	39	49	3	2.5	42	1800	2600	335	475	0.42	1.43	0.79	114	112	154	171	5	10	5.67
32221	T3FC105	105	190	50	43	53	3	2.5	44	1800	2600	380	550	0.42	1.43	0.79	120	117	161	180	5	10	6.07
32222	T3FC110	110	200	53	46	56	3	2.5	46	1700	2400	415	600	0.42	1.43	0.79	126	122	170	190	6	10	7.35
32224	T4FD120	120	215	58	50	61.5	3	2.5	51	1600	2200	490	735	0.44	1.38	0.76	136	132	181	204	7	11.5	1.1
32228	T4FD140	140	250	68	58	71.75	4	3	60	1400	1900	655	100	0.44	1.38	0.76	159	154	210	238	8	13.5	14
32230	T4GD150	150	270	73	60	77	4	3	64	1200	1700	750	1160	0.44	1.38	0.76	171	164	226	254	8	17	18.5
32232	T4GD160	160	290	80	67	84	4	3	69	1100	1600	880	1400	0.44	1.38	0.76	183	172	242	274	10	17	23.8
32234	T4GD170	170	310	86	71	91	5	4	74	1000	1500	9800	1600	0.44	1.38	0.76	196	188	259	294	10	20	29.1
32236	T4GD180	180	320	86	71	91	5	4	77	950	1400	1020	1660	0.45	1.33	0.73	204	198	267	303	10	20	29.9
32238	T4GD190	190	340	92	75	97	5	4	81	900	1300	1140	1830	0.44	1.38	0.76	216	207	286	323	10	22	36.7
32240	T4GD200	200	360	98	82	104	5	4	83	900	1300	1320	2080	0.41	1.48	0.81	226	217	302	340	11	22	43.7
32244	--	220	400	108	90	114	5	4	94	800	1100	1530	2550	0.44	1.38	0.76	258	237	336	380	12	24	60.2
32248	--	240	440	120	100	127	5	4	--	750	1000	1630	2730	0.4	1.5	0.82	296	265	397	426	--	--	78
32252	--	260	480	130	106	137	6	5	--	670	900	2200	3750	0.45	1.39	0.77	306	286	401	460	--	--	103
32260	--	300	540	140	115	149	6	5	--	600	800	2220	3700	0.46	1.3	0.72	364	329	486	524	--	--	132
32264	--	320	580	150	125	159	5	5	--	550	750	2620	4650	0.47	1.27	0.7	342	369	473	551	--	--	172.1

Ningbo DHK Precision Bearing Co., Ltd.

0+

Years Experience Working

0+

Customer Service

0+

Patented Technology

CERTIFICATE

DHK has passed IATF16949 quality system certification and ISO14001 environmental management system certification；and DHK is a national high-tech enterprise.

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

2024-05-07 Industry News

Using improper or damaged rolling mill bearings can have significant consequences in terms of safety and performance: Increased risk of machinery failure: The ramifications of be...

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

2024-05-01 Industry News

Environmental factors like temperature and humidity can significantly impact the performance of rolling mill bearings in several ways:Temperature Effects on Lubrication: Temperatur...

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

2024-04-22 Industry News

Alignment of screw compressor bearings is critical for optimizing performance and minimizing wear. Here are some specific alignment requirements:Parallel Alignment: Achieving preci...

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

2024-04-15 Industry News

Installing and mounting bearings correctly is crucial for ensuring the proper functionality and longevity of engineering machinery. Here are some best practices:Cleanliness: Thorou...

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

2024-04-08 Industry News

Both over-lubrication and under-lubrication of motor bearings can lead to detrimental effects on their performance and lifespan. Here are the potential risks associated with each:O...

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

2024-04-01 Industry News

Factors such as load capacity and rotational speed requirements are crucial considerations when selecting bearings for agricultural applications because they directly affect the pe...

Industry Knowledge Expansion

1. Design Features and Construction of Series 32200 bearings

The design and construction of Series 32200 bearings are a testament to precision engineering and advanced manufacturing techniques. Each component is crafted with meticulous attention to detail to ensure optimal functionality and durability. At the heart of Series 32200 bearings are the tapered raceways and rollers. These components are precisely machined to exacting tolerances, allowing for uniform load distribution across the bearing surfaces. As a result, stress concentrations are minimized, enhancing fatigue life and overall performance. The tapered rollers are carefully positioned within the bearing assembly to maintain proper contact angles with the raceways. This configuration not only facilitates smooth rotation but also ensures efficient load transfer, reducing the risk of premature wear or failure. The outer and inner rings of Series 32200 bearings are manufactured from high-quality materials, such as alloy steel, to withstand the rigors of heavy-duty applications. These rings undergo heat treatment processes to enhance hardness and toughness, ensuring prolonged service life and resistance to wear. Advanced sealing solutions are incorporated into the design to protect the bearing internals from contaminants and moisture. Seals or shields help maintain lubrication integrity, prolonging the intervals between maintenance cycles and enhancing overall reliability.

2. Load Bearing Capacity and Versatility

One of the standout features of Series 32200 bearings is their remarkable load-bearing capacity and versatility. Engineered to excel in handling both radial and axial loads, these bearings find application in a diverse range of industries and settings. In automotive systems, Series 32200 bearings play a critical role in supporting wheel hubs, providing the necessary strength and durability to withstand the forces encountered during vehicle operation. Whether navigating rough terrain or cruising at high speeds, these bearings deliver consistent performance, ensuring a smooth and reliable driving experience. In industrial machinery, Series 32200 bearings are employed in gearboxes, conveyor systems, and other heavy-duty applications where reliability and efficiency are paramount. Their ability to handle significant radial and axial loads makes them ideal for transmitting power and motion in demanding environments. From mining operations to manufacturing facilities, these bearings contribute to the seamless operation of critical machinery, enhancing productivity and minimizing downtime. Series 32200 bearings offer versatility in their application, thanks to their ability to accommodate both radial and axial loads simultaneously. This flexibility allows engineers and designers to optimize the performance of their systems while reducing the number of components required, simplifying assembly and maintenance processes.

Tel
+86-574-86597612
Email
ken@dhk-intl.com
Phone
+86-13957821917
Fax
+86-574-86597652

Add

Building 31, Chuang E Huigu, No.777, West Zhongguan RoadZhenhai Economic Development Zone, Ningbo, Zhejiang, China

Web Menu

Product Search

Language

Exit Menu

Series 32200-Single Row Tapered Roller Bearings OEM/ODM

Categories

How Can We Help You?

Series 32200-Single Row Tapered Roller Bearings

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add

Web Menu

Product Search

Language

Share

Exit Menu

Series 32200-Single Row Tapered Roller Bearings OEM/ODM

Categories

How Can We Help You?

Series 32200-Single Row Tapered Roller Bearings

Ningbo DHK Precision Bearing Co., Ltd.

0+

0+

0+

Click to view our factory

CERTIFICATE

Latest News

What are the potential consequences of using improper or damaged rolling mill bearings in terms of safety and performance?

How do environmental factors, such as temperature and humidity, affect the performance of rolling mill bearings?

Are there any specific alignment requirements for screw compressor bearings to optimize performance and reduce wear?

What are the best practices for installing and mounting bearings in engineering machinery to ensure proper functionality?

What are the potential risks associated with over-lubrication or under-lubrication of motor bearings?

How do factors such as load capacity and rotational speed requirements influence the selection of bearings for different agricultural applications?

Industry Knowledge Expansion

CONTACT US

Tel

Email

Phone

Fax

Add
